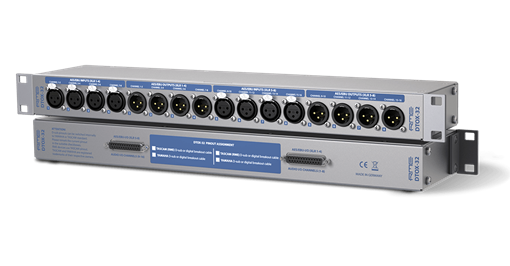

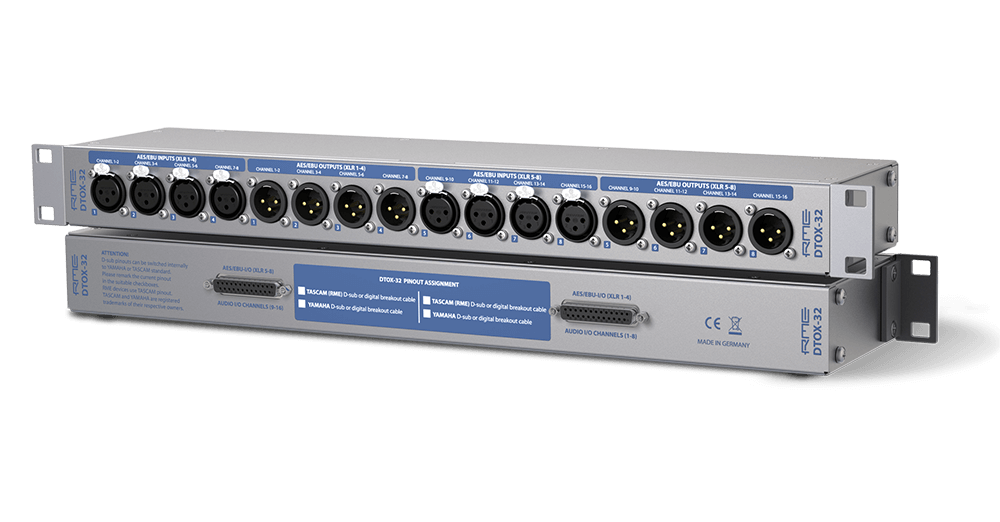

RME DTOX-32

Digital AES/EBU breakoutbox, 4 XLR Male, 4 XLR Female <> 2 x D-sub 25-pin outputs (TASCAM or YAMAHA), 19", 1 RU
Manufacturer: RME Audio
SKU: DTOX32
GTIN: 4260123363123
$399.00

THE DTOX-32 BREAKOUT PANEL IS THE IDEAL EXTENSION FOR DIGITAL MULTICHANNEL INTERFACES

It includes two sets of D-sub to 4 x XLR male and 4 x XLR female each, replacing common breakout cables D-sub to XLR by a professional, solid, stable rack-mounted system. DTOX-32 is pin-compatible to TASCAM (=RME) and Yamaha formats.

RACK MOUNT

The DTOX-32 (also DTOX-16) has removable rack-mount-brackets and can be mounted in front or back position.

CHANGING THE PINOUT AT THE D-SUB 25 CONNECTORS

There are two selectable pinout standards for the 25-pin D-sub connectors of the DTOX-32: the TASCAM-compatible one and the YAMAHA-compatible format. If not ordered specifically, the DTOX-32 is set to the factoy default TASCAM (RME). The respective format is changed by an internal connector inside panel. To change the format requires opening the housing with a medium size cross recessed screwdriver (PH-2 size). ->



THE DTOX-32 BREAKOUT PANEL IS THE IDEAL EXTENSION FOR DIGITAL MULTICHANNEL INTERFACES

It includes two sets of D-sub to 4 x XLR male and 4 x XLR female each, replacing common breakout cables D-sub to XLR by a professional, solid, stable rack-mounted system. DTOX-32 is pin-compatible to TASCAM (=RME) and Yamaha formats.

RACK MOUNT

The DTOX-32 (also DTOX-16) has removable rack-mount-brackets and can be mounted in front or back position.

CHANGING THE PINOUT AT THE D-SUB 25 CONNECTORS

There are two selectable pinout standards for the 25-pin D-sub connectors of the DTOX-32: the TASCAM-compatible one and the YAMAHA-compatible format. If not ordered specifically, the DTOX-32 is set to the factoy default TASCAM (RME). The respective format is changed by an internal connector inside panel. To change the format requires opening the housing with a medium size cross recessed screwdriver (PH-2 size). ->
