    RME Fireface UCX II

    Manufacturer: RME Audio
    40-Channel Advanced USB Audio Interface 192khz featuring ultra-low latency high-resolution ADDA stand-alone recording multi-channel IO/Ipad support, 1U 1/2"rack.
    SKU: UCX2
    GTIN: 4260123363376
    $1,499.00 excl tax
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Delivery date: 7 to 10 Days

    The Fireface UCX II is a highly integrated pro audio solution in an ultra-compact format for studio and live recordings. It continues RME's long tradition of designing compact advanced interfaces, packing into a half-rack size unit what usually would be spread out over two or three 19 inch panels.

    Connectivity and Features

    • 8 x Analog I/O
    • 2 x XLR/TRS Mic/Inst/Line
    • 2 x Line/Inst Input
    • 1 x Phones Output
    • 1 x AES I/O
    • 1 x ADAT I/O
    • 1 x SPDIF I/O Coax
    • 1 x Word Clock I/O
    • 1 x MIDI I/O
    • Class Compliant Mode for iOS/IPAD
    • TotalMix FX
    • ARC USB monitor controller support
    • RME USB 2.0
    • DC-Coupled Outputs - CV/Gate Voltage Control
    • SteadyClock FS
    • Durec
    • AutoSet Digital Gain Control

    The most powerful & portable RME Audio USB Interface

    This unique audio system is capable of transferring analog and digital audio data directly to Windows and Mac computers. The latest Plug and Play technology guarantees a simple installation, even for the inexperienced user. Numerous unique features like a well thought-out Settings dialog and an integrated routing solution realize a quick, comfortable and efficient operation of the Fireface UCX II.

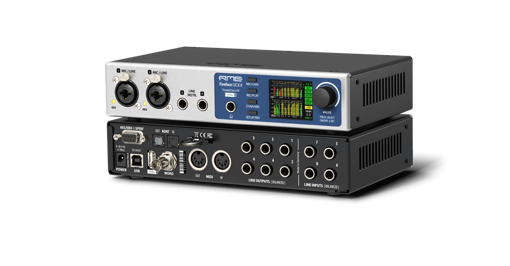

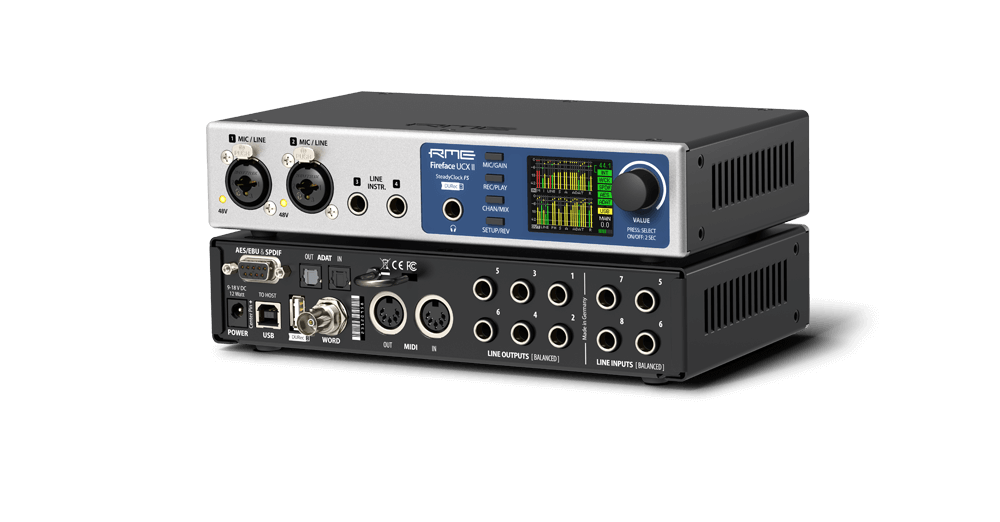

    The Fireface UCX II houses two mic/line preamps in XLR combo configuration on the front panel, along with two digitally controlled line/instrument inputs, followed by a headphone jack, various control buttons, a display, and the main volume knob. At the rear is a set of ten analogue balanced line inputs and outputs, MIDI I/O, ADAT I/O, AES/EBU and SPDIF I/O, USB 2.0 as well as a switchable word clock I/O.

    With the SteadyClock FS, the Fireface UCX II features the latest clock and jitter rejection technology from RME. Based on a femtosecond clock, SteadyClock FS reduces the intrinsic jitter when converting from and to analogue over all digital formats to a new all-time low.

    Specs

    Fireface UCX II

    Analog

    AD, Line In 5-8, rear

    • Resolution AD: 24 bit
    • Signal to Noise ratio (SNR): 112 dB RMS unweighted, 115 dBA
    • Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.8 kHz
    • Frequency response @ 96 kHz, -0.5 dB: 3 Hz – 45.8 kHz
    • Frequency response @ 192 kHz, -1 dB: 2 Hz – 92 kHz
    • THD: < -110 dB, < 0.00032 %
    • THD+N: < -104 dB, < 0.00063 %
    • Channel separation: > 110 dB
    • Input: 6.3 mm TRS jack, electronically balanced
    • Input impedance: 8 kOhm unbalanced, 12 kOhm balanced
    • Input sensitivity switchable to +19 dBu and +13 dBu
    • Variable gain: 0 to +12 dB
    • Minimum level for 0 dBFS: +1 dBu, -1.2 dBV

    Line In 3-4, front

    As AD, but:

    • Additional Gain stage: 0 up to +12 dB
    • Maximum input level, +19 dBu, Gain 0 dB: Line +19 dBu, Inst +13 dBu
    • Maximum input level, +13 dBu, Gain 12 dB: Line +1 dBu, Inst -5 dBu
    • Input impedance: Instrument 1 MOhm. Line 13 kOhm balanced, 9 kOhm unbalanced
    • Input Gain Inst: +6 dB
    • Input mode: Line balanced (TRS), Inst unbalanced (TS)

    Microphone In 1-2, front

    As AD, but:

    • Input: XLR, electronically balanced
    • Input impedance: 5.4 kOhm
    • Gain range: 75 dB
    • Maximum input level, Gain 0 dB: +18 dBu
    • Maximum input level, Gain 75 dB: -57 dBu
    • EIN: -128 dBu A-weighted, 60 dB gain,150 Ohm, 20 Hz – 20 kHz

    Line In 1-2

    As AD, but:

    • Input: TRS, electronically balanced
    • Input impedance: 10 kOhm balanced, 5 kOhm unbalanced
    • Maximum input level, Gain 0 dB: +24 dBu
    • Maximum input level, Gain 75 dB: -51 dBu

    DA, Line Out 1-6, rear

    • Resolution: 24 bit
    • Dynamic range (DR): 112 dB RMS unweighted, 115 dBA
    • Frequency response @ 44.1 kHz, -0.5 dB: 5 Hz – 20.8 kHz
    • Frequency response @ 96 kHz, -0.5 dB: 5 Hz – 45 kHz
    • Frequency response @ 192 kHz, -1 dB: 5 Hz - 89 kHz
    • THD: < -108 dB, < 0.0004 %
    • THD+N: < -104 dB, < 0.00063 %
    • Channel separation: > 110 dB
    • Maximum output level: +19 dBu
    • Output: 6.3 mm TRS jack, servo-balanced
    • Output impedance: 75 Ohm
    • Output level switchable +19 dBu, +13 dBu, +4 dBu

    DA - Stereo Monitor Output Phones (7-8)

    As DA, but:

    • Output: 6.3 mm TRS stereo jack, unbalanced
    • Maximum output level at 0 dBFS, High: +19 dBu
    • Maximum output level at 0 dBFS, Low: +4 dBu
    • Output impedance: 1 Ohm
    • Max power per channel @ 32 Ohm load, 0.1% THD: 210 mW (2.6 Vrms, +10.5 dBu)

    MIDI

    • 1 x MIDI I/O via 5-pin DIN jacks
    • Galvanically isolated by optocoupled input
    • Hi-speed mode: Jitter and response time typically below 1 ms
    • Separate 128 byte FIFOs for input and output

    Digital

    • Clocks: Internal, ADAT, AES, SPDIF, word clock
    • Jitter suppression of external clocks: > 50 dB (2.4 kHz)
    • Effective clock jitter influence on AD and DA conversion: near zero
    • PLL ensures zero dropout, even at more than 100 ns jitter
    • Digital Bitclock PLL for trouble-free varispeed ADAT operation
    • Supported sample rates: 28 kHz up to 200 kHz

    Digital Inputs

    AES/EBU

    • 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
    • High-sensitivity input stage (< 0.3 Vpp)
    • SPDIF compatible (IEC 60958)
    • Accepts Consumer and Professional format
    • Lock range: 27 kHz – 200 kHz
    • Jitter suppression: > 50 dB (2.4 kHz)

    SPDIF coaxial

    • 1 x RCA, according to IEC 60958
    • High-sensitivity input stage (< 0.3 Vpp)
    • Accepts Consumer and Professional format, copy protection will be ignored
    • Lock Range: 27 kHz – 200 kHz
    • Jitter suppression: > 50 dB (2.4 kHz)

    ADAT Optical

    • 1 x TOSLINK, format according to Alesis specification
    • Standard: 8 channels 24 bit, up to 48 kHz
    • Double Speed (S/MUX): 4 channels 24 bit 96 kHz
    • Quad Speed (S/MUX4): 2 channels 24 bit 192 kHz
    • Bitclock PLL ensures perfect synchronisation even in varispeed operation
    • Lock range: 31.5 kHz – 50 kHz
    • Jitter suppression: > 50 dB (2.4 kHz)
    • SPDIF compatible (automatic detection)

    Word Clock

    • BNC
    • Internal termination 75 Ohm switchable
    • Automatic Double/Quad Speed detection and internal conversion to Single Speed
    • SteadyClock guarantees super low jitter synchronization even in varispeed operation
    • Not affected by DC-offsets within the network
    • Signal Adaptation Circuit: signal refresh through auto-center and hysteresis
    • Overvoltage protection
    • Level range: 1.0 Vpp – 5.6 Vpp
    • Lock Range: 27 kHz – 200 kHz
    • Jitter suppression: > 50 dB (2.4 kHz)

    Digital Outputs

    AES/EBU

    • XLR, transformer-balanced, galvanically isolated, according to AES3-1992
    • Output level Professional 4.5 Vpp, Consumer 2.6 Vpp
    • Format Professional according to AES3-1992 Amendment 4
    • Format Consumer (SPDIF) according to IEC 60958
    • Single Wire mode, sample rate 28 kHz up to 200 kHz

    SPDIF coaxial

    • 1 x RCA, according to IEC 60958
    • Output level Professional 1.2 Vpp, Consumer 0.6 Vpp
    • Format Professional according to AES3-1992 Amendment 4
    • Format Consumer (SPDIF) according to IEC 60958
    • Single Wire mode, sample rate 28 kHz up to 200 kHz

    ADAT

    • 1 x TOSLINK, format according to Alesis specification
    • Standard: 8 channels 24 bit, up to 48 kHz
    • Double Speed (S/MUX): 4 channels 24 bit 96 kHz
    • Quad Speed (S/MUX4): 2 channels 24 bit 192 kHz

    Word Clock

    • BNC
    • Max. output voltage: 5 Vpp
    • Output voltage @ 75 Ohm termination: 4.0 Vpp
    • Output impedance: 10 Ohm
    • Frequency range: 27 kHz – 200 kHz

    General

    • Power supply: external power supply
    • Typical power consumption: 13 Watts
    • Current at 12 Volt operating voltage: 910 mA (11 Watts)
    • Dimensions incl. rack ears, full depth (WxHxD): 265 x 44 x 155 mm (10.5" x 1.73" x 6.1")
    • Dimensions without rack ears, body depth (WxHxD): 215 x 44 x 130 mm (8.5" x 1.73" x 5.1")
    • Weight: 910 g ( 2.0 lbs)
    • Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
    • Relative humidity: < 75%, non condensing
