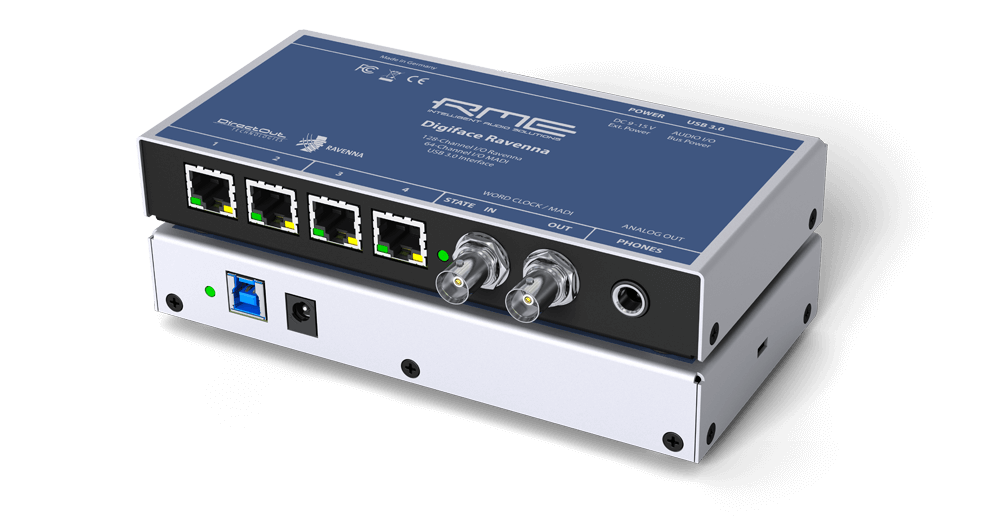

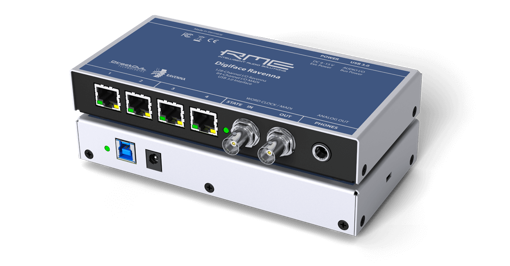

    RME DIGIFACE DANTE Ravenna

    Manufacturer: RME Audio
    24 Bit / 192 kHz, 256-channel Hi-Performance USB 3.0 Audio Interface, 4 x Gigabit Ethernet (802.3 compliant) Ravenna audio I/O, MADI Coaxial I/O
    SKU: Digiface Ravenna
    Availability: Availability Contact for availability
    $2,099.00 excl tax
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Mobile RAVENNA Solution via USB

    The combination of RME’s renowned drivers (Mac/Windows) and DirectOut’s RAVENNA implementation offer a reliable and flexible networked computer audio interface. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high quality phones output offers a quick listen to any audio channel, but can also be used as line output to provide an additional analog stereo mixdown.

    RAVENNA & MADI

    RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Ravenna and MADI, 128 channels, are transferred via USB 3.0 and handled via the included RAVENNA web server or RME's TotalMix FX, for full and struggle-free control of all audio.

    On the network side, the interface features a full-fledged RAVENNA stack with AES67 and ST2110-30/31 support and redundant audio-over-IP streaming as per ST2022-7. In addition, the interface can also be used as a mobile 64-channel RAVENNA/MADI converter without a USB connection to a computer. The coaxial MADI I/O connectors may also be configured to work as word clock sync I/O.

    TotalMix FX and TotalMix Remote

    Like all the latest RME interfaces, the Digiface Series also includes the powerful digital real-time mixer TotalMix FX. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.

    The Digiface Series includes a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more. The Digiface Series does not support DSP based effects (FX) like EQ or reverb.

    Additionally RME’s latest software, TotalMix Remote, enhances the power of RME interfaces by enabling remote control via iOS, PC or Mac. With a straightforward set up process — simply enter the IP address of the computer you would like to control with TotalMix Remote and get going — users can quickly adjust any aspect of TotalMix FX on a host system while walking around the studio with their tablet, or from a control room located elsewhere in the facility.

    SPECS

    Digiface Ravenna

    Gigabit Ethernet Port

    • RJ45
    • 100 Mbit/s, 1 Gbit/s
    • Standard port LEDs: yellow connected, green data transmission
    • Supports straight and crossover cables (Auto MDI-X)
    • Network-based remote control of the unit (TotalMix Remote)


    RAVENNA Modul

    • Supports RAVENNA, AES67, ST 2110-30 / -31, ST 2022-7
    • Network Layer 3
    • Modes: Switched and Redundancy according to ST 2022-7
    • 32 streams
    • 128 channels Single Speed, 64 channels Double Speed, 32 channels Quad Speed
    • Clock sources: PTP, Internal
    • Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, +/-12.5 %
    • Routing: Channel-based routing matrix
    • Configuration: Browser GUI, globcon control, NMOS IS-04 / IS-05


    MADI Input

    • Coaxial via BNC, 75 Ohm, according to AES10-1991
    • High-sensitivity input stage (< 0.2 Vpp)
    • Accepts 56 channel and 64 channel mode, plus 96k Frame
    • Standard: up to 64 channels 24 bit 48 kHz
    • S/MUX: up to 32 channels 24 bit 96 kHz
    • S/MUX4: up to 16 channels 24 bit 192 kHz
    • Lock range: 25 kHz – 54 kHz


    MADI Output

    • Coaxial via BNC, 75 Ohm, according to AES10-1991
    • Output voltage 400 mVpp
    • Cable length: up to 50 m
    • Generates 56 channel and 64 channel mode, plus 96k Frame
    • Standard: up to 64 channels 24 bit 48 kHz
    • S/MUX / 96k Frame: up to 32 channels 24 bit 96 kHz
    • S/MUX4: up to 16 channels 24 bit 192 kHz


    Output Analog Phones 129/130

    • Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
    • Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHz
    • Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHz
    • Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
    • THD @ -1 dBFS: - 96 dB, 0.0016 %
    • THD+N @ -1 dBFS: -95 dB, 0.0017 %
    • Channel separation: > 100 dB
    • Output: 6.3 mm TRS jack, unbalanced
    • Output impedance: 2 Ohm
    • Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
    • Max power @ 0.1% THD: 50 mW


    Word Clock In

    • BNC, not terminated (10 kOhm)
    • Switchable internal termination 75 Ohm
    • Automatic Double/Quad Speed detection and conversion to Single Speed


    Word Clock Out

    • BNC
    • Max level: 5 Vss
    • Level with termination 75 Ohm: 4.0 Vss
    • Internal impedance: 10 Ohm
    • Output Analog Phones 129/130
    • Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
    • Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHz
    • Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHz
    • Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
    • THD@-1dBFS:-96dB,0.0016%
    • THD+N @ -1 dBFS: -95 dB, 0.0017 %
    • Channel separation: > 100 dB
    • Output: 6.3 mm TRS jack, unbalanced
    • Output impedance: 2 Ohm
    • Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
    • Max power @ 0.1% THD: 50 mW


    Digital

    • Clocks: Internal, RAVENNA (PTP), word, MADI
    • Supported sample rates: 44.1 kHz up to 192 kHz
