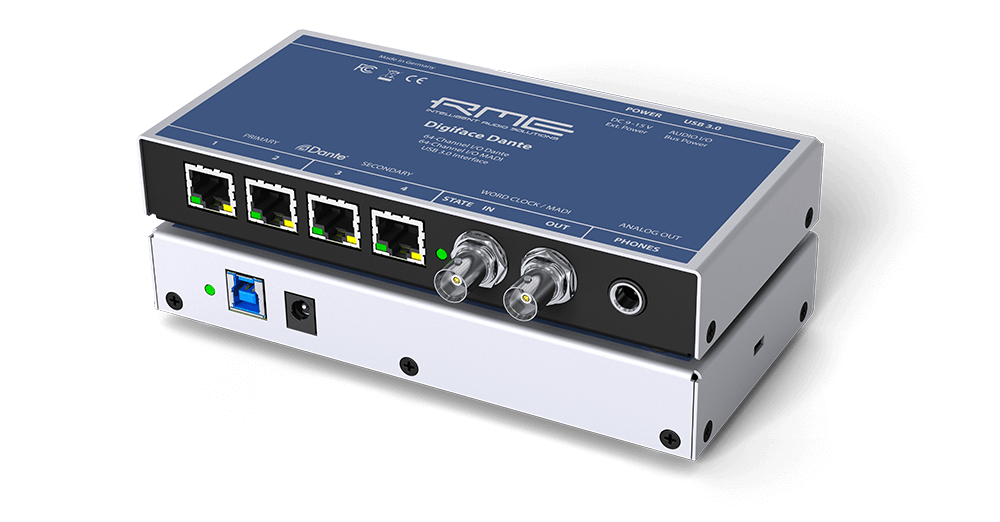

RME DIGIFACE DANTE

24 Bit / 192 kHz, 256-channel Hi-Performance USB 3.0 Audio Interface, Dante I/O, MADI Coaxial I/O
Manufacturer: RME Audio
SKU: DFDANTE
GTIN: 4260123363208
$1,499.00

The Digiface Dante is a lightweight, portable audio interface, combining Dante network connectivity and features with everything that RME is famous for: USB 3, MADI, TotalMix FX and outstanding options in both USB and stand-alone operation.



Connectivity and Features


RME USB 3.0

1 x Phones Output

TotalMix FX


ARC USB

Clock I/O

2 x Gigabit Ethernet (802.3 compliant)


1 x MADI I/O coaxial



Audinate’s Dante protocol combines with the industry-renowned reliability of RME Audio devices

Dante is an audio over IP protocol by Audinate. The Digiface Dante is a USB 3.0 from/to Dante interface, adding an external and fully mobile option to the internally used Dante PCIe card. Digiface Dante uses RME's matured MADIface Series driver for Windows and macOS, with lowest latency and industry leading stability. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high quality phones output offers a quick listen to any audio channel, but can also be used as line output to provide an additional analog stereo mixdown. Equipped with the largest Dante module 64 channel can be send and received via network.



RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Dante and MADI, 128 channels, are transferred via USB 3.0 and handled via both Dante control software and RME's TotalMix FX, for full and struggle-free control of all audio.

Explore new Ways to transport Audio

Equipped with two banks of redundant network ports, the Digiface Dante is more than just an audio interface. It also offers the functionality of a switch, connecting up to 4 network lines, removing the need for further switches to distribute and collect network lines, or offers redundancy operation with 2-port connectivity for both the primary and secondary network.

Used without USB the Digiface Dante automatically turns into a 64-channel Dante / MADI converter. The analog stereo output can be preconfigured to send out a mix of exactly those channels that are needed. Full network redundancy and switch functionality are also available. With USB bus power operation and an external power supply connection a stable and redundant power supply is ensured. As Dante has become AES67 compatible, the Digiface Dante supports another format on the network side for even greater flexibility and more applications.



SPECS

Digiface Dante



  • 256 Channels: 128 in / 128 out
  • 64 Channels Dante / 64 Channels MADI
  • 2 x Gigabit Ethernet (802.3 compliant)
  • 1 x MADI I/O coaxial I/0
  • Headphone Output
  • Wordclock I/0
  • USB 3
  • Bus-powered
  • TotalMix FX



The Digiface Dante is a lightweight, portable audio interface, combining Dante network connectivity and features with everything that RME is famous for: USB 3, MADI, TotalMix FX and outstanding options in both USB and stand-alone operation.



Connectivity and Features


RME USB 3.0

1 x Phones Output

TotalMix FX


ARC USB

Clock I/O

2 x Gigabit Ethernet (802.3 compliant)


1 x MADI I/O coaxial



Audinate’s Dante protocol combines with the industry-renowned reliability of RME Audio devices

Dante is an audio over IP protocol by Audinate. The Digiface Dante is a USB 3.0 from/to Dante interface, adding an external and fully mobile option to the internally used Dante PCIe card. Digiface Dante uses RME's matured MADIface Series driver for Windows and macOS, with lowest latency and industry leading stability. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high quality phones output offers a quick listen to any audio channel, but can also be used as line output to provide an additional analog stereo mixdown. Equipped with the largest Dante module 64 channel can be send and received via network.



RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Dante and MADI, 128 channels, are transferred via USB 3.0 and handled via both Dante control software and RME's TotalMix FX, for full and struggle-free control of all audio.

Explore new Ways to transport Audio

Equipped with two banks of redundant network ports, the Digiface Dante is more than just an audio interface. It also offers the functionality of a switch, connecting up to 4 network lines, removing the need for further switches to distribute and collect network lines, or offers redundancy operation with 2-port connectivity for both the primary and secondary network.

Used without USB the Digiface Dante automatically turns into a 64-channel Dante / MADI converter. The analog stereo output can be preconfigured to send out a mix of exactly those channels that are needed. Full network redundancy and switch functionality are also available. With USB bus power operation and an external power supply connection a stable and redundant power supply is ensured. As Dante has become AES67 compatible, the Digiface Dante supports another format on the network side for even greater flexibility and more applications.



SPECS

Digiface Dante



  • 256 Channels: 128 in / 128 out
  • 64 Channels Dante / 64 Channels MADI
  • 2 x Gigabit Ethernet (802.3 compliant)
  • 1 x MADI I/O coaxial I/0
  • Headphone Output
  • Wordclock I/0
  • USB 3
  • Bus-powered
  • TotalMix FX



Product tags
Blog posts about this product
DAWBench Radio Episode 03: Audio Interface Low Latency Performance : RME – Setting the Bar !

Check out this new and very informative pobcast episode from Dawbench.

Hosts Vin Curigliano of AAVIM Technology, and guest co-host Erin Leon Herbers of XI Machines, and special guest Matthias Carstens, the co founder and head of development of RME discuss RME's history, culture and business philosophy.

They also discuss cross platform performance and the variuos connectitity protocals and future deveopments.



 Check out more DAWBench episodes here.

Fundamental AV Systems at NAMM. featuring our TB31015 15" laptop in action!

Hey folks,

Although we were not able to attend NAMM in person this year we were able to send some systems!

We sent Synthax three of our ultra-thin TB31015 15" laptops to run their demo rigs for showcasing the Babyface Pro FS, Digiface Dante and Digiface AVB interfaces.

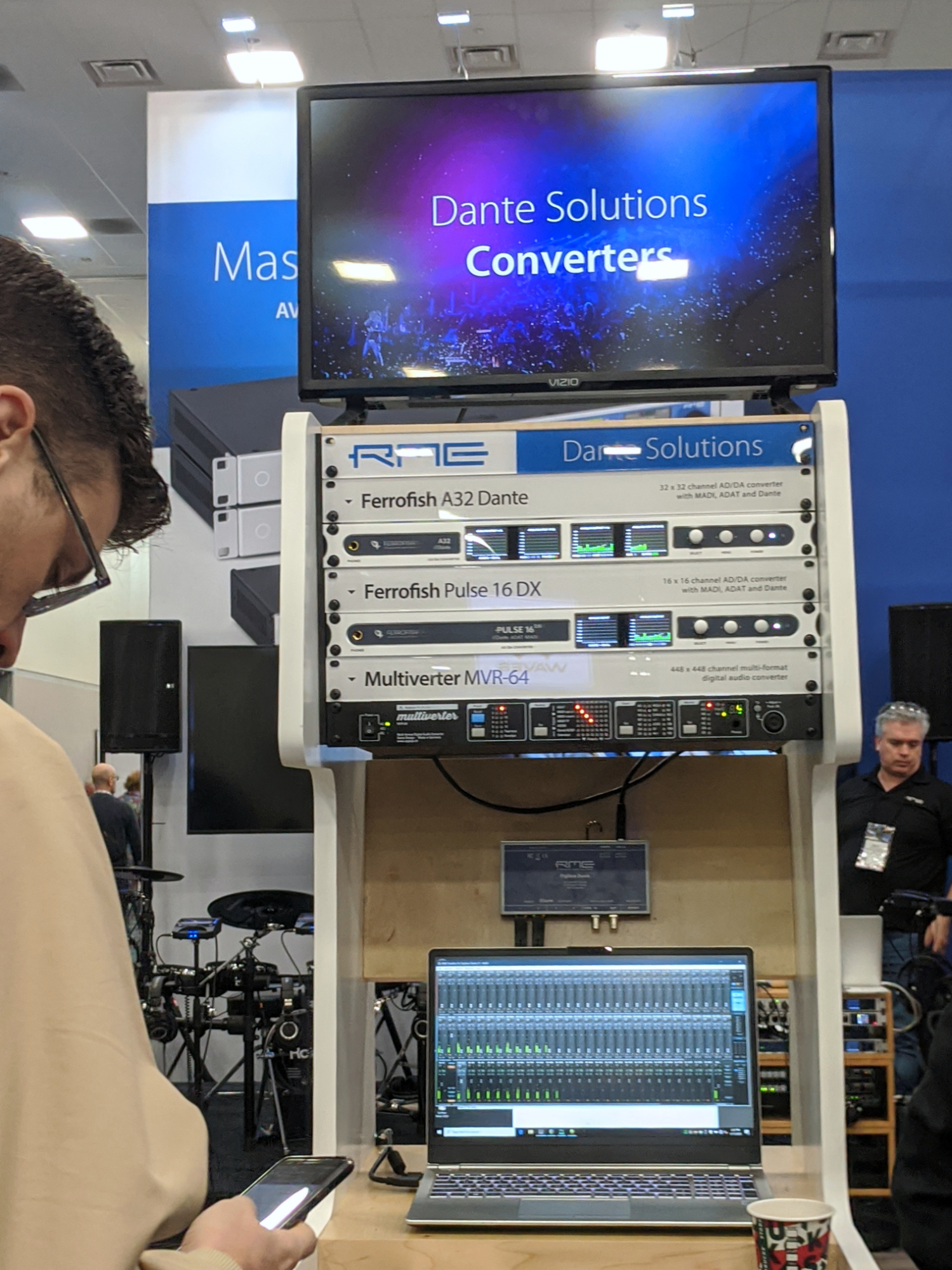

Here a TB31015 being used at the RME/Synthax booth running their demos for the new Babyface Pro FS using Gig Performer and an amp sim running at a 48 buffer glitch-free.

Here a TB31015 being used at the RME/Synthax booth running their demos for the new Babyface Pro FS using Gig Performer and an amp sim running at a 48 buffer glitch-free.

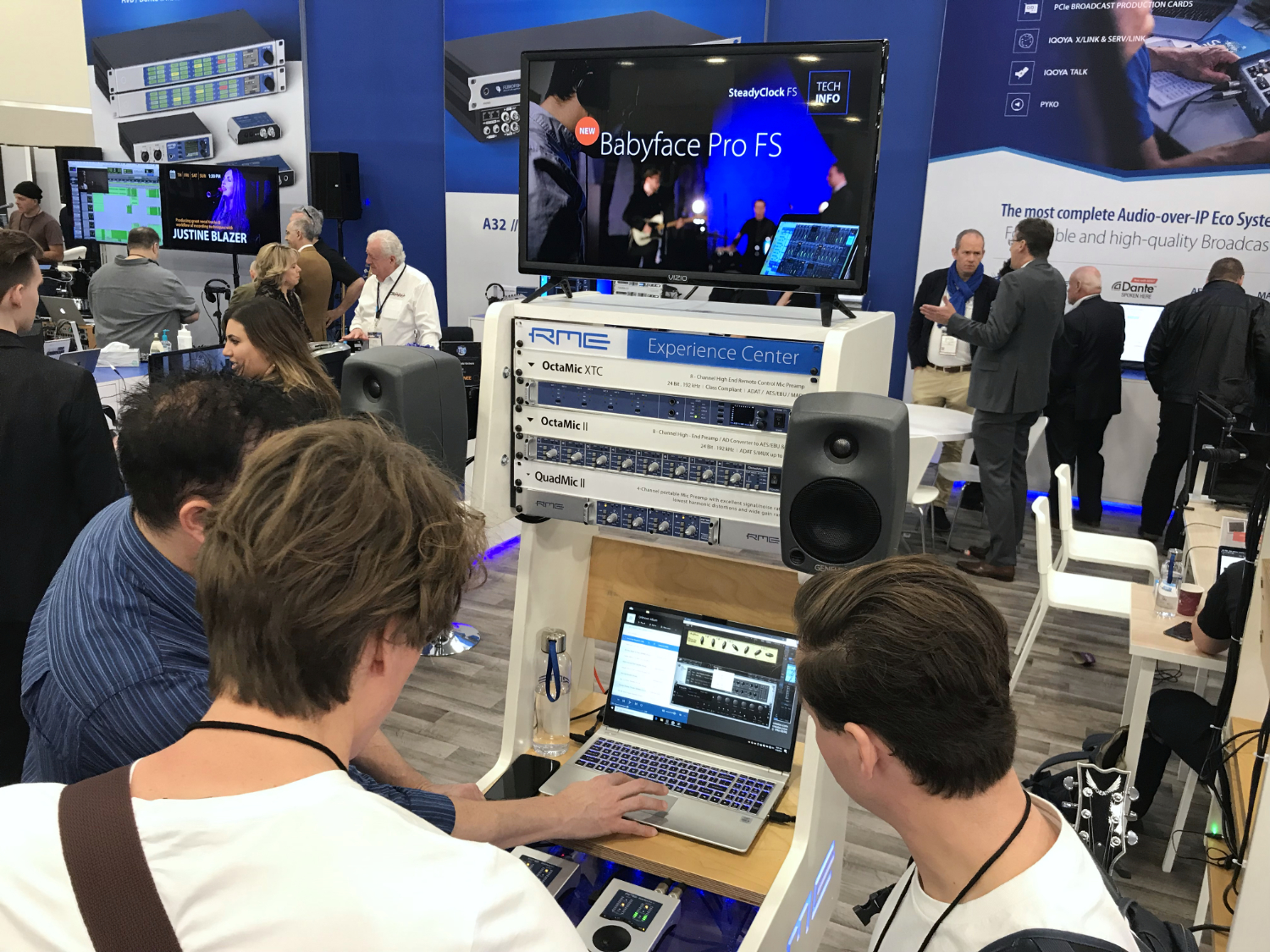

Another picture of our TB31015 being used at the RME/Synthax booth running their demos for the new Babyface Pro FS using Gig Performer and an amp sim running at a 48 buffer glitch-free.
