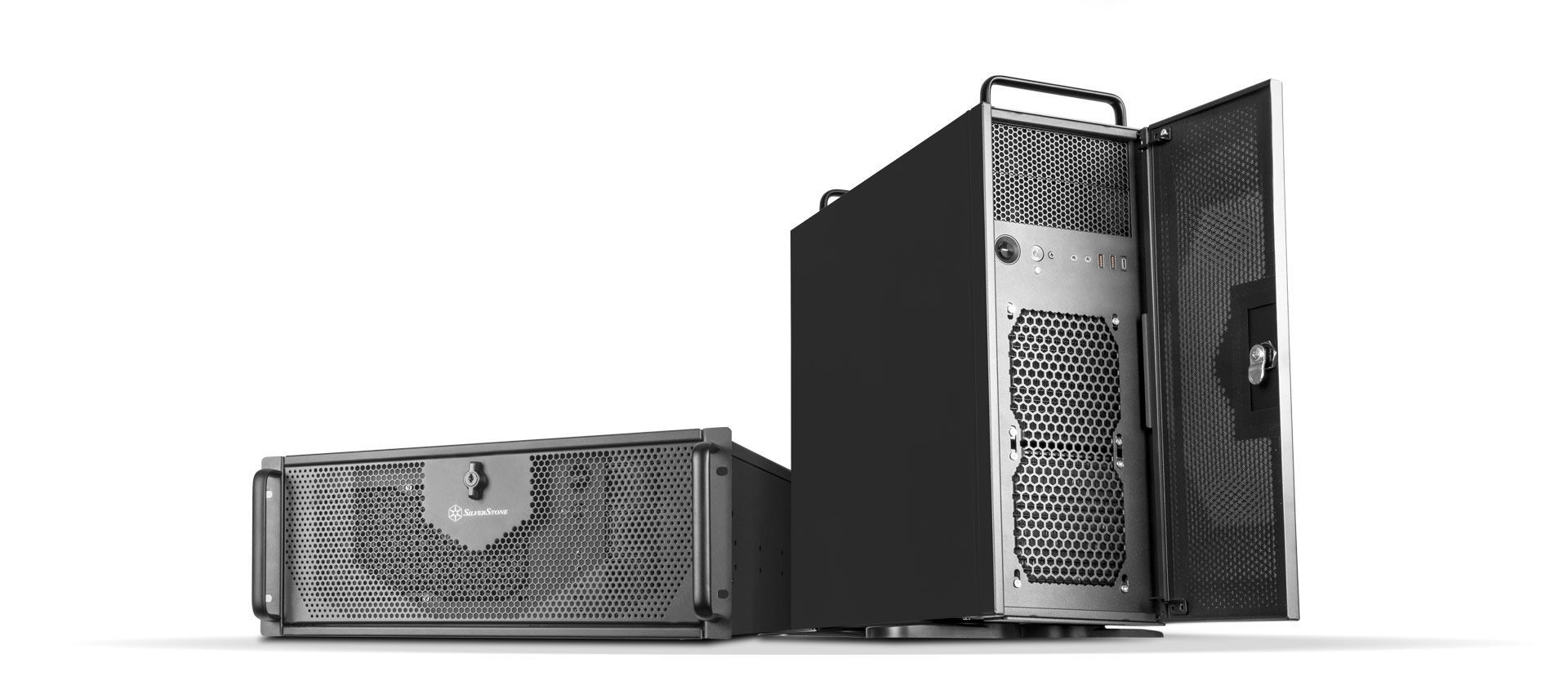

Built around the Silverstone RM42-502 4 Rackmount that we optimized for audio and video production use with very quiet AIO Liquid Cooling and extra quiet fans.
￭ Supports up to SSI-EEB motherboards
￭ The front panel features an anti-theft lock design providing additional security
￭ 240mm liquid cooling radiator included
￭ Two 5.25" drive bays directly compatible with 3.5" or 2.5" drives
￭ Includes one front USB Type-C interface
￭ Includes sliding rail mounting holes for quick rail installation
￭ Can be placed upright or horizontal
SPECIFICATIONS
| Model No. | SST-RM42-502B (Black) |
| Chassis form factor | 4U |
| Material | Steel |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Drive Bay | External | 5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2) |
| Internal | 2.5" x 1 |
| Cooling System | Front | 120mm x 2 (120mm x 1 fan included) |
| Rear | 80mm x 2 (80mm x 1 fan included) |
| Radiator support | Front | 120mm x 2 / 240mm x 1 |
| Power Supply | PS2 (ATX) (PSU + optical drives / 5.25" devices = 442mm) / Mini Redundant |
| Expansion card | Length w/ expansion card retainer: 337mm
Length w/o expansion card retainer: 426mm
Width w/ GPU holder: 116mm
Width w/o GPU holder: 154mm |
| Expansion Slot | 7 |
| Front I/O Port | USB Type-C x 1, USB 3.0 x 2, Audio x 1, MIC x 1 |
| LED indicator | Power status x 1, HDD activity x 1 |
| Net Weight | 9.9kg |
| Dimension | 430mm (W) x 176mm (H) x 468mm (D)
16.93" (W) x 6.93" (H) x 18.43" (D) |
| Extra | Side switch for chassis intrusion security |
