HD-SDI Box Camera

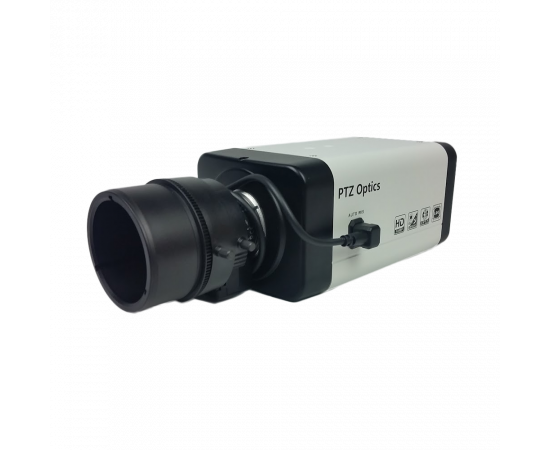

The PTZ Optics ZCam-4X is a 1080p box camera with 4X optical zoom for capturing HD video with a variety
of lenses. With support for HD-SDI & IP Streaming this camera is ideal for broadcasting high definition video
signals for broadcast or video conferencing applications up to 1080p/30 resolution.
KEY FEATURES
• Panasonic 1/2.7” inch HD CMOS Sensor
• HD-SDI High Definition Video Output
• H.264 IP Streaming Output (dual stream)
• High performance in low illumination situations
• Full 1920x1080p HD Resolutions up to 30 frames per second
• 2D and 3D noise reduction with our latest “low noise CMOS sensor”
• Motion Detection built in
• Button controls on back of camera
• RS485 and ONVIF compatible IP remote camera control
• Wide Dynamic Range and defeatable IR auto-day/night mode
Camera & Lens
- Video Output Interface HD-SDI, RJ45
- Lens Zoom 4X Optical Zoom
- Power Supply 12W
- Video CMOS Sensor 1/2.7” CMOS, 2.07 Mega Pixels
- Frame Rate 1080p 30/25, 1080i 60/50, 720p 60/50
- Included Lens F 2.8mm ~ 12mm, F1.4
- Lens Field of View 122°
- Min Lux .05 Lux (F1.8, AGC ON )
- Shutter Speed 1/30s - 1/10000s
- SNR ≥55dB
- Vertical Flip & Mirror Supported
- Lens Hor. Angle of View 28° (tele) - 122° (wide)
- Working Environment Indoor
Physical Specifications
- Dimensions 2.9”W x 5.9”D x 2.4”H
- Weight 0.9 lbs. (1.1 lbs. w/ lens)
- Box Dimensions 8.2”W x 6.3”D x 4.6”H
- Box Weight 1.6 lbs.
Rear Board Connectors
- Network Communication Interface RS485 VISCA, Pelco - D&P
- Power Supply Interface JEITA type Power Adapter (DC IN 12V)
Electrical Index
- Input Voltage 12V DC (10.8 - 13.0V DC)
