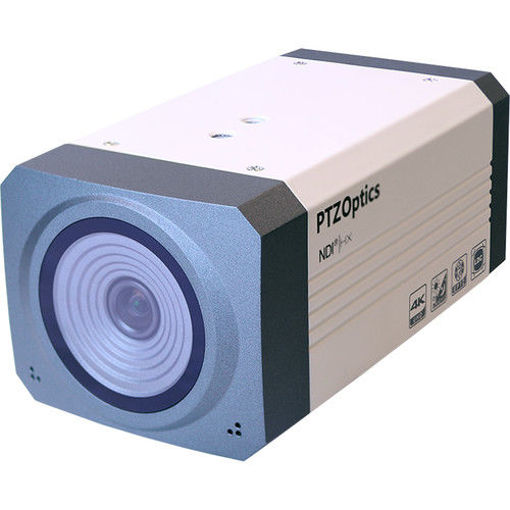

The PTZOptics EPTZ-NDI ZCAM is a 1080p at 30fps camera with a 4K image sensor for capturing HD
images at short distances. With support for 3G-SDI and IP streaming, this camera is ideal for delivering
high definition video signals to broadcast or live streaming applications.
KEY FEATURES
- Panasonic 1/2.5” HD CMOS Sensor
- Full 1920x1080p HD Resolution up to 30 FPS
- 104° Horizontal Field of View
- 2D & 3D noise reduction
- Simultaneous Dual 3G-SDI, NDI®|HX / High Definition IP Outputs
- Dual SDI output (Full view / EPTZ view)
- NDI®|HX, H.264, H.265, & MJPEG IP streaming outputs
- RTMP / RTMPS, RTSP, and NDI®|HX
- AAC Audio encoding over NDI®|HX / RTSP / RTMP
- Dynamic / Static IP addressing (Hold D-Pad left for 5+ sec to toggle)
- High performance in low light scenarios
- RS-485, VISCA over IP, & NDI available for camera control
- Four (4) Std 1/4-20 female threads for camera mounting
- PoE (Power over Ethernet) or 12VDC
- 3-year warranty
CAMERA AND LENS
- Video Sensor 1/2.5” CMOS, 8.51 Mega Pixels
- Frame Rates 1080p-30/25, 1080i-30/25, 720p-30/25
- Focal Length F=2.8mm
- Digital Zoom Up to 8x
- Field of View 104°
- Min Lux 0.5 Lux at F1.8, AGC ON
- Shutter Speed 1/30s - 1/10000s
- SNR ≥55dB
- Vertical Flip & Mirror Supported
- Horizontal Field of View 42° (tele) to 104° (wide)
- Vertical Field of View 24° (tele) to 65°(wide)
- Working Environment Indoor
REAR BOARD CONNECTORS
- SDI Output 1 Full Camera View
- SDI Output 2 EPTZ Video Feed
- Video Output Interface 3G-SDI, NDI|HX
- Communication Interface RS485 VISCA, Pelco-D, Pelco-P
- Baud Rate 2400/4800/9600 bits
- Power Supply Interface JEITA type Power Adapter (DC in 12V)
PHYSICAL SPECIFICATIONS
- Dimensions (in.) 2.8W x 2.4H x 5.6D (6.3 w/ SDI)
- Dimensions (mm.) 72W x 60H x 143mm (162 w/ SDI)
- Camera Weight 1.4 lbs | 0.63 kg
- Box Dimensions (in.) 9.4W x 4.7D x 4.3H
- Box Dimensions (mm.) 240W x 120D x 110H
- Box Weight 2.0 lbs | 0.90 kg
