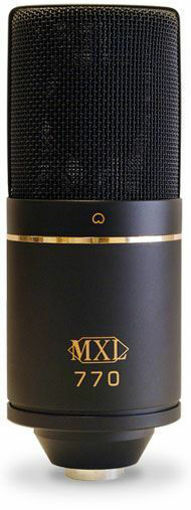

PATENTEDThe popular MXL 770 is a high quality multipurpose condenser mic that vocalists gravitate to for its solid low frequency response and clear high end. To achieve this MXL uses a high-quality FET pre-amp and transformerless balanced output for wide dynamic range and low noise. Features include a low frequency roll-off to reduce unwanted rumbling and a 10db pad to facilitate a wide variety of sound sources. The 770 comes with a shockmount to reduce mechanical vibrations and a rugged carrying case. The MXL 770 is a perfect combination of quality, flexibility, and value for both professional and home recording studios.
- Multipurpose condenser microphone
- Low frequency roll-off to reduce unwanted rumble
- Warm sound with extra clarity at the top end
- Low noise FET preamp with balanced, transformerless output
- Excellent for vocals, pianos and strings
Type: | Pressure gradient condenser microphone |
Diaphragm: | 6 micron gold-sputtered |
Capsule Size: | 22mm/.87 in. |
Frequency Response: | 30Hz - 20kHz |
Polar pattern: | Cardioid |
Sensitivity: | 15mV/Pa |
Output Impedance: | 150 ohms |
Pre-Attenuation Switch: | 0 dB, -10 dB |
High Pass Filter: | 6 dB/octave @ 150Hz |
Equivalent noise: | 20 dB (A-weighted IEC 268-4) |
S/N Ratio: | 74 dB (Ref. 1 Pa A-weighted) |
Max SPL for .5% THD: | 137 dB |
Power Requirements: | 48V phantom power (+/- 4V) |
Size: | 59mm x 158mm/2.32 in. x 6.22 in. |
Weight: | 1 lb/453.59g |
Metal Finish: | Black with black grill |
