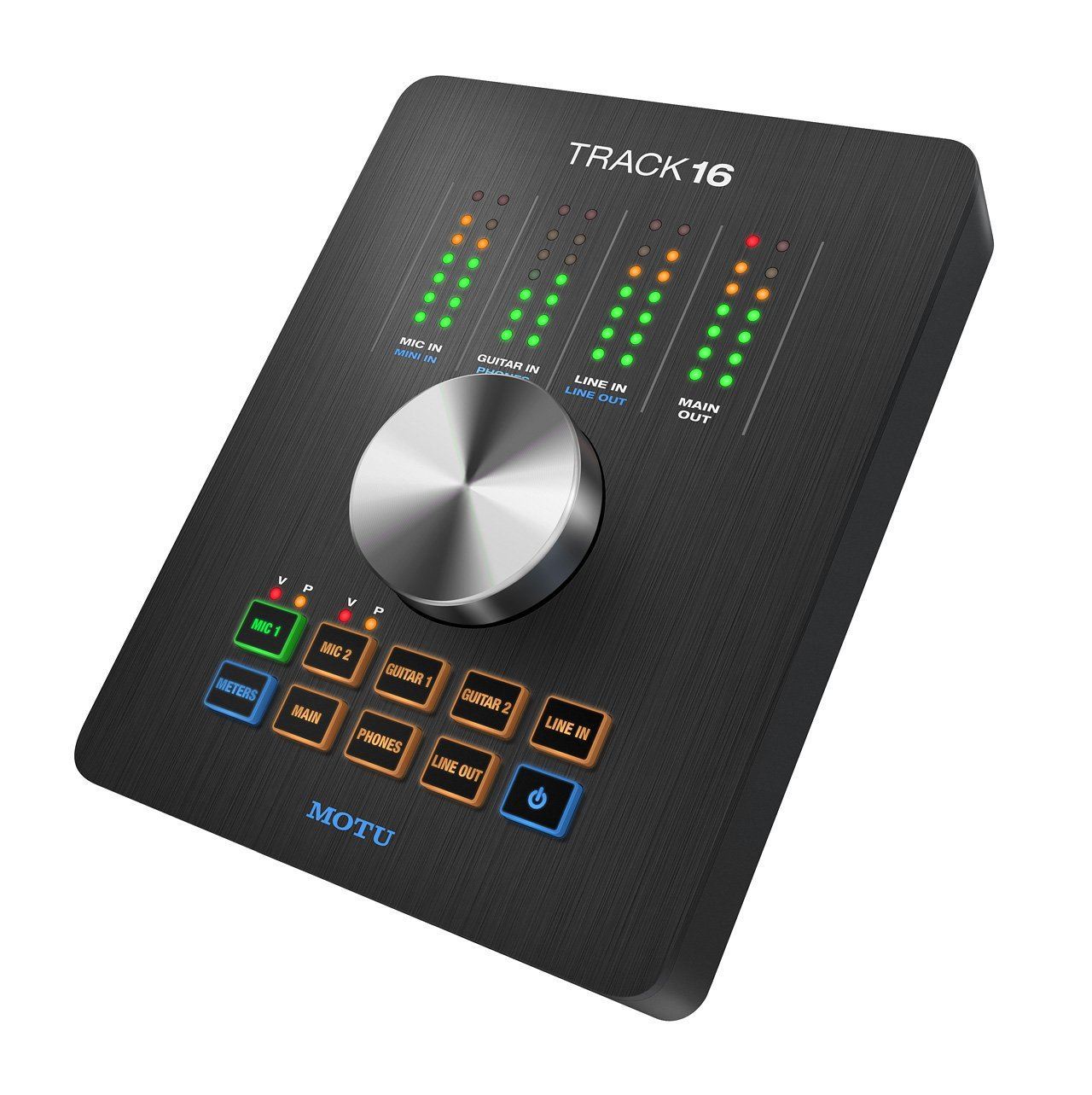

MOTU TRACK16

16x14 desktop I/O with 2 preamps, 2 guitar, 2x4 analog, CueMix FX, MIDI
Manufacturer: MOTU
SKU: TRACK16
$549.00

Simple, elegant and professional

How can such a compact unit offer 16 channels of input and 14 channels of output, simultaneously, with mixing? The short answer: Track16 truly is an engineering achievement, packing the same quantity and quality of audio channels as other interfaces that cost hundreds more.



Technical Specifications

Converters 24-bit
Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
Analog inputs 2 x XLR mic inputs 2 x 1/4" TRS line inputs (balanced/unbalanced) 1 x 1/8" stereo "mini" line inputs (unbalanced) 2 x 1/4" hi-Z guitar inputs
Analog outputs 2 x 1/4" balanced TRS main out 2 x 1/4" unbalanced TRS line out 1 x 1/4" TRS stereo headphone 1 x 1/8" stereo headphone
Digital I/O 8-channel ADAT optical at 1x sample rates 4-channel SMUX optical at 2x sample rates 2-channel TOSlink (optical S/PDIF) up to 96 kHz8-channel ADAT optical at 1x sample rates 4-channel SMUX optical at 2x sample rates 2-channel TOSlink (optical S/PDIF) up to 96 kHz
Computer I/O 1 x FireWire 400 (Type B connector) 1 x USB 2.0
Sync in/out SMPTE time code (LTC)
Headphone output 1 x 1/4" TRS stereo phone 1 x 1/8" stereo phone
Phantom power Individual +48V
Top panel 2 x 7-segment ladder LEDs • main outs 2 x 7-segment LEDs • mic in or line 3-4 in 2 x 7-segment LEDs • guitar in or phones 2 x 7-segment LEDs • line in 1-2 or line out 2 x LEDs • 48V phantom power 2 x LEDs • -20 dB pad 5 x backlit switches • input select 3 x backlit switches • output select 1 x backlit switch • meters toggle 1 x backlit switch • power
Power requirements 9-18V DC, 5W, tip + or - FireWire bus power DC power adapter included, required for stand-alone and USB 2.0 operation (except with FireWire bus power)

System Requirements

Mac System Requirements PowerPC G4 CPU 1 GHz or faster (including any Mac with a PowerPC G5 or any Intel processor) 1 GB RAM; 2 GB or more recommended Mac OS X version 10.8, 10.7, 10.6, or 10.5; v10.5.8 or later required Available FireWire or high-speed USB 2.0 port A large hard drive (preferably at least 250 GB)
Windows System Requirements 1 GHz Pentium-based PC compatible or faster equipped with at least one USB2 or FireWire port 1 GB RAM; 2 GB or more recommended Windows 10, 8, 7 or Vista, 32- or 64-bit; Vista SP 2 or later required Available FireWire or high-speed USB 2.0 port A large hard drive (preferably at least 250 GB)
Included Software CueMix FX MOTU SMPTE Console AudioDesk (Mac only, optical CD drive required)
Included Software Mac OS X version 10.8, 10.7, 10.6, or 10.5 (v10.5.8 or later is required) Windows 10, 8, 7 or Vista (SP2 or later is required)
64-bit operation For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later For web app control: Mac, Windows, Linux, iOS, Android

Compatible Mac Software

The Track16 ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:

  • MOTU Digital Performer
  • MOTU AudioDesk
  • Avid Pro Tools (version 9 or later)
  • Apple Logic Pro
  • Apple Logic Express
  • Apple Garage Band
  • Apple SoundTrack Pro
  • Ableton Live
  • Propellerhead Record & Reason
  • Steinberg Cubase
  • Cockos Reaper
  • Native Instruments Kontakt
  • Waves stand-alone apps (and plug-ins, via compatible host)

Compatible Windows Software

The Track16 ships with standard Wave and ASIO drivers for Windows 10, 8, 7 and Vista for compatibility with virtually all Wave-compatible audio apps, including:

  • MOTU Digital Performer
  • Avid Pro Tools (version 9 or later)
  • Ableton Live
  • Cakewalk Sonar
  • Steinberg Cubase
  • Propellerhead Record & Reason
  • Image Line FL Studio
  • Sony Vegas Pro
  • Sony Sound Forge
  • Sony Acid
  • Cockos Reaper
  • Native Instruments Kontakt
  • Waves stand-alone apps (and plug-ins, via compatible host)



Simple, elegant and professional

How can such a compact unit offer 16 channels of input and 14 channels of output, simultaneously, with mixing? The short answer: Track16 truly is an engineering achievement, packing the same quantity and quality of audio channels as other interfaces that cost hundreds more.



Technical Specifications

Converters 24-bit
Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
Analog inputs 2 x XLR mic inputs 2 x 1/4" TRS line inputs (balanced/unbalanced) 1 x 1/8" stereo "mini" line inputs (unbalanced) 2 x 1/4" hi-Z guitar inputs
Analog outputs 2 x 1/4" balanced TRS main out 2 x 1/4" unbalanced TRS line out 1 x 1/4" TRS stereo headphone 1 x 1/8" stereo headphone
Digital I/O 8-channel ADAT optical at 1x sample rates 4-channel SMUX optical at 2x sample rates 2-channel TOSlink (optical S/PDIF) up to 96 kHz8-channel ADAT optical at 1x sample rates 4-channel SMUX optical at 2x sample rates 2-channel TOSlink (optical S/PDIF) up to 96 kHz
Computer I/O 1 x FireWire 400 (Type B connector) 1 x USB 2.0
Sync in/out SMPTE time code (LTC)
Headphone output 1 x 1/4" TRS stereo phone 1 x 1/8" stereo phone
Phantom power Individual +48V
Top panel 2 x 7-segment ladder LEDs • main outs 2 x 7-segment LEDs • mic in or line 3-4 in 2 x 7-segment LEDs • guitar in or phones 2 x 7-segment LEDs • line in 1-2 or line out 2 x LEDs • 48V phantom power 2 x LEDs • -20 dB pad 5 x backlit switches • input select 3 x backlit switches • output select 1 x backlit switch • meters toggle 1 x backlit switch • power
Power requirements 9-18V DC, 5W, tip + or - FireWire bus power DC power adapter included, required for stand-alone and USB 2.0 operation (except with FireWire bus power)

System Requirements

Mac System Requirements PowerPC G4 CPU 1 GHz or faster (including any Mac with a PowerPC G5 or any Intel processor) 1 GB RAM; 2 GB or more recommended Mac OS X version 10.8, 10.7, 10.6, or 10.5; v10.5.8 or later required Available FireWire or high-speed USB 2.0 port A large hard drive (preferably at least 250 GB)
Windows System Requirements 1 GHz Pentium-based PC compatible or faster equipped with at least one USB2 or FireWire port 1 GB RAM; 2 GB or more recommended Windows 10, 8, 7 or Vista, 32- or 64-bit; Vista SP 2 or later required Available FireWire or high-speed USB 2.0 port A large hard drive (preferably at least 250 GB)
Included Software CueMix FX MOTU SMPTE Console AudioDesk (Mac only, optical CD drive required)
Included Software Mac OS X version 10.8, 10.7, 10.6, or 10.5 (v10.5.8 or later is required) Windows 10, 8, 7 or Vista (SP2 or later is required)
64-bit operation For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later For web app control: Mac, Windows, Linux, iOS, Android

Compatible Mac Software

The Track16 ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:

  • MOTU Digital Performer
  • MOTU AudioDesk
  • Avid Pro Tools (version 9 or later)
  • Apple Logic Pro
  • Apple Logic Express
  • Apple Garage Band
  • Apple SoundTrack Pro
  • Ableton Live
  • Propellerhead Record & Reason
  • Steinberg Cubase
  • Cockos Reaper
  • Native Instruments Kontakt
  • Waves stand-alone apps (and plug-ins, via compatible host)

Compatible Windows Software

The Track16 ships with standard Wave and ASIO drivers for Windows 10, 8, 7 and Vista for compatibility with virtually all Wave-compatible audio apps, including:

  • MOTU Digital Performer
  • Avid Pro Tools (version 9 or later)
  • Ableton Live
  • Cakewalk Sonar
  • Steinberg Cubase
  • Propellerhead Record & Reason
  • Image Line FL Studio
  • Sony Vegas Pro
  • Sony Sound Forge
  • Sony Acid
  • Cockos Reaper
  • Native Instruments Kontakt
  • Waves stand-alone apps (and plug-ins, via compatible host)
