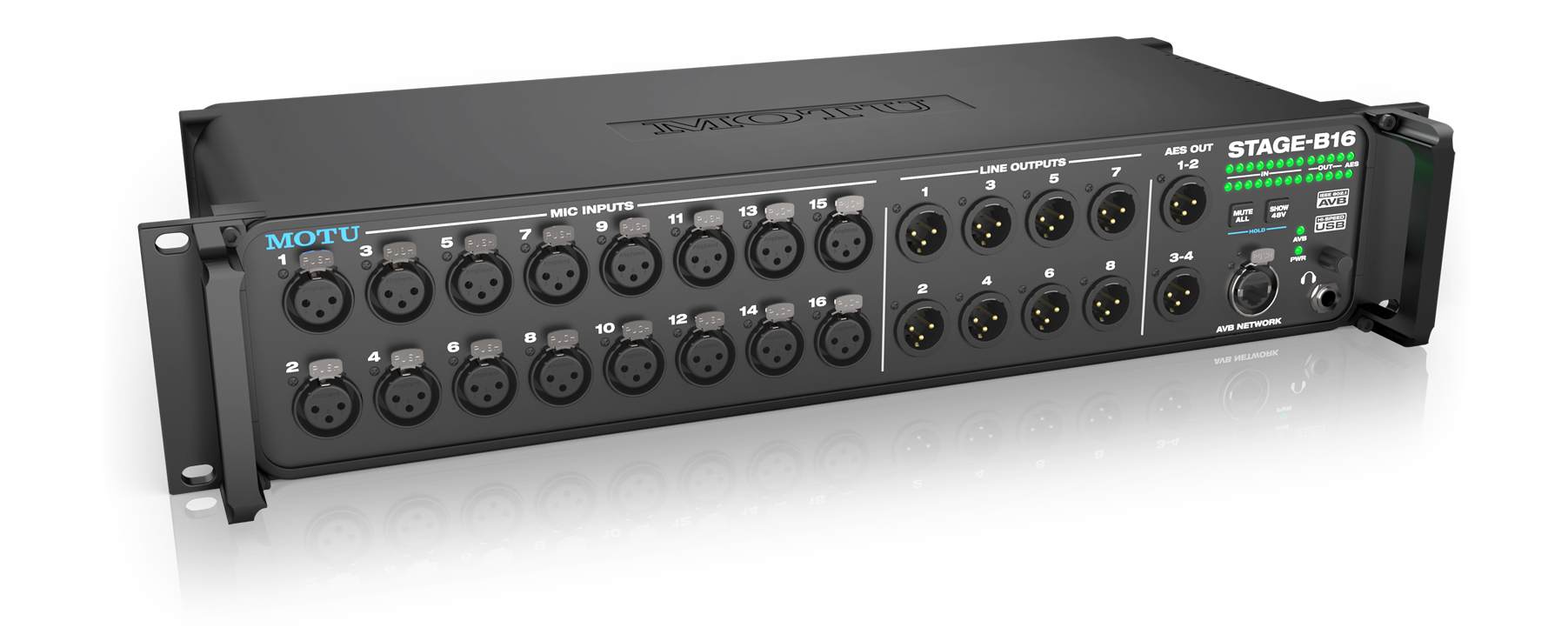

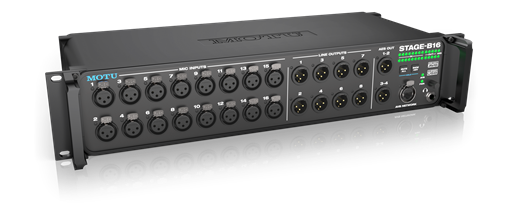

    MOTU Stage-B16

    Manufacturer: MOTU
    16x12 stage box / mixer / interface with DSP & AVB-TSN networking
    SKU: stageb16
    Availability: Availability Contact for availability
    $1,695.00 excl tax
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Stage-B16 Feature Summary

    Three products in one

    1) DSP-equipped stage box with AVB Ethernet "digital snake" connectivity, 2) 12-bus digital mixer with wireless control and 3) universally compatible audio interface for Mac and Windows.

    Studio-quality analog performance up to 192 kHz

    For example, the XLR analog outputs produce 123 dB dynamic range.

    16 studio-grade mic inputs

    Each equipped with individual preamps, 48V phantom power and -20dB pad. Also includes eight analog outs on XLRs, 4 channels of AES/EBU output and phones.

    Precision Digital Trim™

    Digitally controlled analog preamp gain provides accurate adjustments in 1 dB increments from web app software running on your laptop, tablet or smartphone, with the ability to save gain settings.

    On-board DSP with mixing and effects

    Flexible 48-input digital mixer modeled after large format mixing consoles, with 12 stereo busses and DSP effects, including reverb, 4-band EQ, gate, and compression.

    Web app control from any device

    Control on-board DSP, mixing, device settings, and network audio routing from innovative web app software running in your favorite browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network.

    Stand-alone operation with wireless control

    Connect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects from your smartphone or tablet, without a computer.

    32-bit floating point processing

    The Stage-B16's mixing and effects DSP engine delivers virtually unlimited headroom and the utmost in sound quality.

    Modeled vintage effects processing

    Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.

    System expansion

    Add a 2nd MOTU AVB interface (1248, 8M, 16A, 24Ai, 24Ao, 112D or Monitor 8) with a simple CAT-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).

    AVB audio networking

    Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.

    Universal connectivity

    Connects to your computer with standard AVB Ethernet or audio class compliant hi-speed USB 2.0 (compatible with USB 3.0 and iOS). Compatible with all audio software.

    AudioDesk

    Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.

    Technical Specifications

    Sample rates44.1, 48, 88.2, 96, 176.4, 192 kHz
    Mic inputs16 x XLR mic inputs
    Preamp gain: 0 to +63 dB (digitally controlled)
    Analog outputs8 x XLR line out
    Max level: +20 dBu (digitally adjustable -4 to +20)
    1 x 1/4" TRS stereo headphone
    Digital output2 x XLR female AES/EBU out (4 ch) up to 96 kHz
    Total I/O16 in and 12 out (28 total) at 1x sample rates
    16 in and 12 out (28 total) at 2x sample rates
    16 in and 8 out (24 total) at 4x sample rates
    Computer I/O1 x USB 2.0 audio class compliant
          USB 3.0 and iOS compatible
    1 x AVB Ethernet (requires OS X Yosemite)
    Computer I/O channelsUSB 2.0 (44.1 to 48 kHz): 64 in/out
    USB 2.0 (88.2 to 96 kHz): 32 in/out
    USB 2.0 (176.4 to 192 kHz): 24 in/out
    AVB Ethernet: 16 to 128 in/out, depending on
          host computer speed
    MIDI I/O1 x MIDI IN
    1 x MIDI OUT
    16 MIDI channels to/from computer host
    Headphone1 x 1/4" TRS stereo phone (assignable)
    Phantom power16 x individual +48V
    Network I/O1 x RJ45 AVB/TSN Ethernet (100 Mbps)
    AVB streams
    (8 channels per stream)
    3 in / 3 out @ 44.1 or 48 kHz
    2 in / 2 out @ 88.2 or 96 kHz
    1 in / 1 out @ 176.4 or 192 kHz
    Front panel1 x 1/4" TRS headphone output
    1 x digital rotary encoder • phone volume
    2 x switches • (1) Mute All and (1) Show 48V
    16 x activity LEDs • (16) input, (8) output, (2) AES
    1 x female Ethernet 'EtherCon' port
    2 x male XLR AES/EBU outputs (4 channels)
    8 x male XLR analog outputs
    16 x female XLR mic inputs with indiv. 48V/pad
    Rack-mount brackets and handles (optional)
    PowerInternational 100-240V autoswitching supply
    50-60 Hz • 0.5A max
    Dimensions
    and weight
    (width x depth x height, enclosure only)
    19 x 7 x 3.5 inches
    48.3 x 17.75 x 8.89 cm
    5.0 lbs / 2.27 kg
    with rack brackets removed:
    17.25 inches (43.8 cm) wide
    4.7 lbs / 2.13 kg

    Mac System Requirements

    • 1 GHz Intel-based Mac or faster
    • 2 GB RAM; 4 GB or more recommended
    • Mac OS X version 10.8 or later
    • Available high-speed USB 2.0 or AVB Ethernet port*
    • A large hard drive (at least 500 GB for recording)
    • *AVB Ethernet audio interface operation requires OS X Yosemite

    Windows System Requirements

    • 1 GHz Pentium-based PC compatible or faster
    • 2 GB RAM; 4 GB or more recommended
    • Windows 10, 8 or 7
    • Available USB 2.0 or 3.0 port
    • Available Ethernet port for firmware updates
    • A large hard drive (at least 500 GB for recording)

    Web App Support

    • Any web client platform: Mac, Windows, Linux, iOS, Android
    • Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
    • Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi.

    Included Software

    • MOTU Discovery App for Mac & PC (finds connected MOTU interfaces)
    • MOTU Discovery App for iOS (available from Apple App Store)
    • MOTU Pro Audio Control web app (served from the hardware itself)
    • MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer)
    • AudioDesk 4.0 for Mac & PC (separate download)

    Operating Systems

    • For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
    • For web app control: Mac, Windows, Linux, iOS, Android

    Analog I/O Specifications


    Connector type
    Dynamic range
    (A-weighted)
    THD+N
    (unweighted)
    Max
    level
    Trim range
    (in 1 dB steps)
    Line outputMale XLR123 dB-110 dB+20 dBu24 dB (-4 to +20)
    Mic inputFemale XLR117 dB-110 dB+24 dBu
    (with pad)
    63 dB
    Phones1/4", TRS stereo112 dB-94 dBMax. 80 mw128 dB

    Compatible Mac Software

    The Stage-B16 ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:

    • MOTU Digital Performer
    • Avid Pro Tools (version 9 or later)
    • Apple Logic Pro
    • Apple Logic Express
    • Apple Garage Band
    • Apple SoundTrack Pro
    • Ableton Live
    • Propellerhead Record & Reason
    • Steinberg Cubase
    • Cockos Reaper
    • Native Instruments Kontakt
    • Waves stand-alone apps (and plug-ins, via compatible host)

    Compatible Windows Software

    The Stage-B16 ships with standard ASIO and Wave drivers for Windows 10, 8 and 7 for compatibility with virtually all ASIO- and Wave-compatible audio apps, including:

    • MOTU Digital Performer
    • Avid Pro Tools (version 9 or later)
    • Ableton Live
    • Cakewalk Sonar
    • Steinberg Cubase
    • Propellerhead Record & Reason
    • Image Line FL Studio
    • Sony Vegas Pro
    • Sony Sound Forge
    • Sony Acid
    • Cockos Reaper
    • Native Instruments Kontakt
    • Waves stand-alone apps (and plug-ins, via compatible host)
