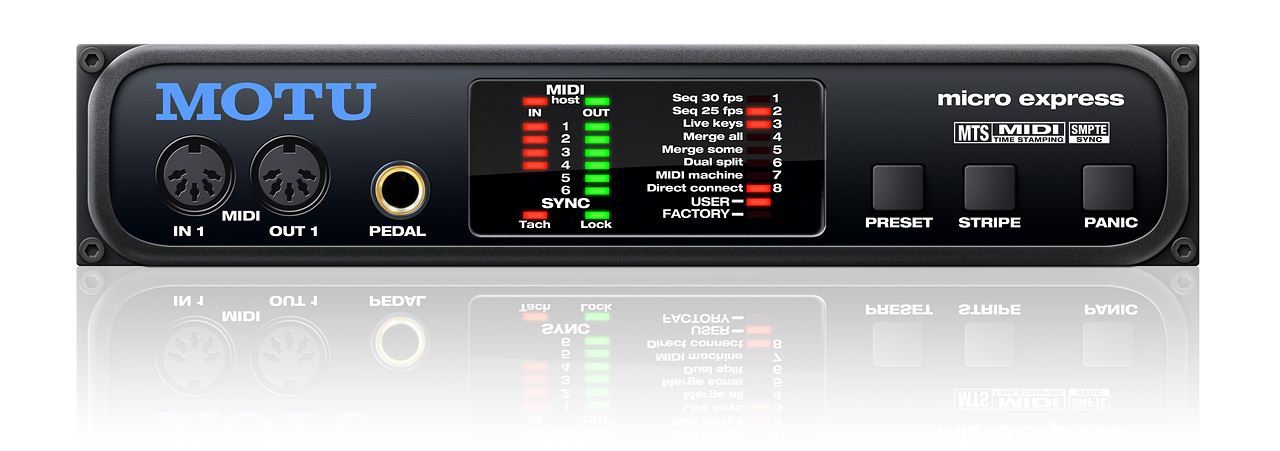

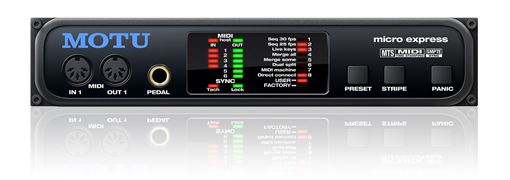

MOTU Micro Express

4x6 USB MIDI interface
Manufacturer: MOTU
SKU: MICROEXPRESS
$249.00

Feature Highlights

  • USB MIDI interface for Mac and Windows
  • Stand-alone MIDI patchbay/merger/processor (when powered via USB)
  • SMPTE time code sync in all formats (includes new support for 23.976* fps time code)
  • 4x6 MIDI merge matrix: connects any device to any other
  • 16 front panel presets
  • 4 independent MIDI IN
  • 6 independent MIDI OUT
  • 96 MIDI channels
  • Supports MIDI Machine Control transport messages
  • Pedal input for momentary foot switch
  • 16 presets with 8 programmable, battery-backed memory
  • MIDI Time Stamping (MTS) for sub-millisecond timing accuracy
  • Includes updated drivers and ClockWorks™ software for Mac and Windows
  • USB bus-powered

MIDI and Sync

MIDI processing

  • Merge any inputs to any outputs
  • Route any inputs to any outputs
  • Mute any MIDI data on any cable
  • Re-channelize on input and output

Synchronization

  • SMPTE time code (LTC) generater and reader
  • Converts LTC to MIDI Time Code (MTC) to sync a Mac, PC or any other devices to SMPTE time code
  • Converts all SMPTE frame rates (23.976*, 24, 25, 29.97 drop, 29.97 non-drop, 30)
  • Stripes SMPTE time code in all frame rates (23.976*, 24, 25, 29.97 drop, 29.97 non-drop, 30)
  • Converts MIDI Time Code to SMPTE time code
  • SMPTE "Jam Sync" with adjustable freewheeling for dropout-free sync
  • Supports MIDI Machine Control - serves as either an MMC master or slave, distributes MMC transport commands to all other MMC devices

Specifications

  • Custom-designed VLSI technology
  • Front panel buttons and LED's for choosing presets (8 factory, 8 user)
  • Front panel SMPTE stripe button
  • Front panel SMPTE lock and tach LED's
  • Status lights for MIDI IN/OUT and computers
  • Front panel MIDI IN and OUT ports
  • Panic button
  • 10 MIDI connectors
  • 2 SMPTE quarter-inch phone (line level)
  • 1 pedal quarter-inch phone input
  • Includes software console for Mac and Windows, USB cable
  • Chassis dimensions, excluding rack ears: 9.5 x 7 x 1.75 inches (24.13 x 17.78 x 4.45 cm). With rack ears attached, fits one half of a standard 19 inch (48.26 cm) rack at 1U high.



Feature Highlights

  • USB MIDI interface for Mac and Windows
  • Stand-alone MIDI patchbay/merger/processor (when powered via USB)
  • SMPTE time code sync in all formats (includes new support for 23.976* fps time code)
  • 4x6 MIDI merge matrix: connects any device to any other
  • 16 front panel presets
  • 4 independent MIDI IN
  • 6 independent MIDI OUT
  • 96 MIDI channels
  • Supports MIDI Machine Control transport messages
  • Pedal input for momentary foot switch
  • 16 presets with 8 programmable, battery-backed memory
  • MIDI Time Stamping (MTS) for sub-millisecond timing accuracy
  • Includes updated drivers and ClockWorks™ software for Mac and Windows
  • USB bus-powered

MIDI and Sync

MIDI processing

  • Merge any inputs to any outputs
  • Route any inputs to any outputs
  • Mute any MIDI data on any cable
  • Re-channelize on input and output

Synchronization

  • SMPTE time code (LTC) generater and reader
  • Converts LTC to MIDI Time Code (MTC) to sync a Mac, PC or any other devices to SMPTE time code
  • Converts all SMPTE frame rates (23.976*, 24, 25, 29.97 drop, 29.97 non-drop, 30)
  • Stripes SMPTE time code in all frame rates (23.976*, 24, 25, 29.97 drop, 29.97 non-drop, 30)
  • Converts MIDI Time Code to SMPTE time code
  • SMPTE "Jam Sync" with adjustable freewheeling for dropout-free sync
  • Supports MIDI Machine Control - serves as either an MMC master or slave, distributes MMC transport commands to all other MMC devices

Specifications

  • Custom-designed VLSI technology
  • Front panel buttons and LED's for choosing presets (8 factory, 8 user)
  • Front panel SMPTE stripe button
  • Front panel SMPTE lock and tach LED's
  • Status lights for MIDI IN/OUT and computers
  • Front panel MIDI IN and OUT ports
  • Panic button
  • 10 MIDI connectors
  • 2 SMPTE quarter-inch phone (line level)
  • 1 pedal quarter-inch phone input
  • Includes software console for Mac and Windows, USB cable
  • Chassis dimensions, excluding rack ears: 9.5 x 7 x 1.75 inches (24.13 x 17.78 x 4.45 cm). With rack ears attached, fits one half of a standard 19 inch (48.26 cm) rack at 1U high.
