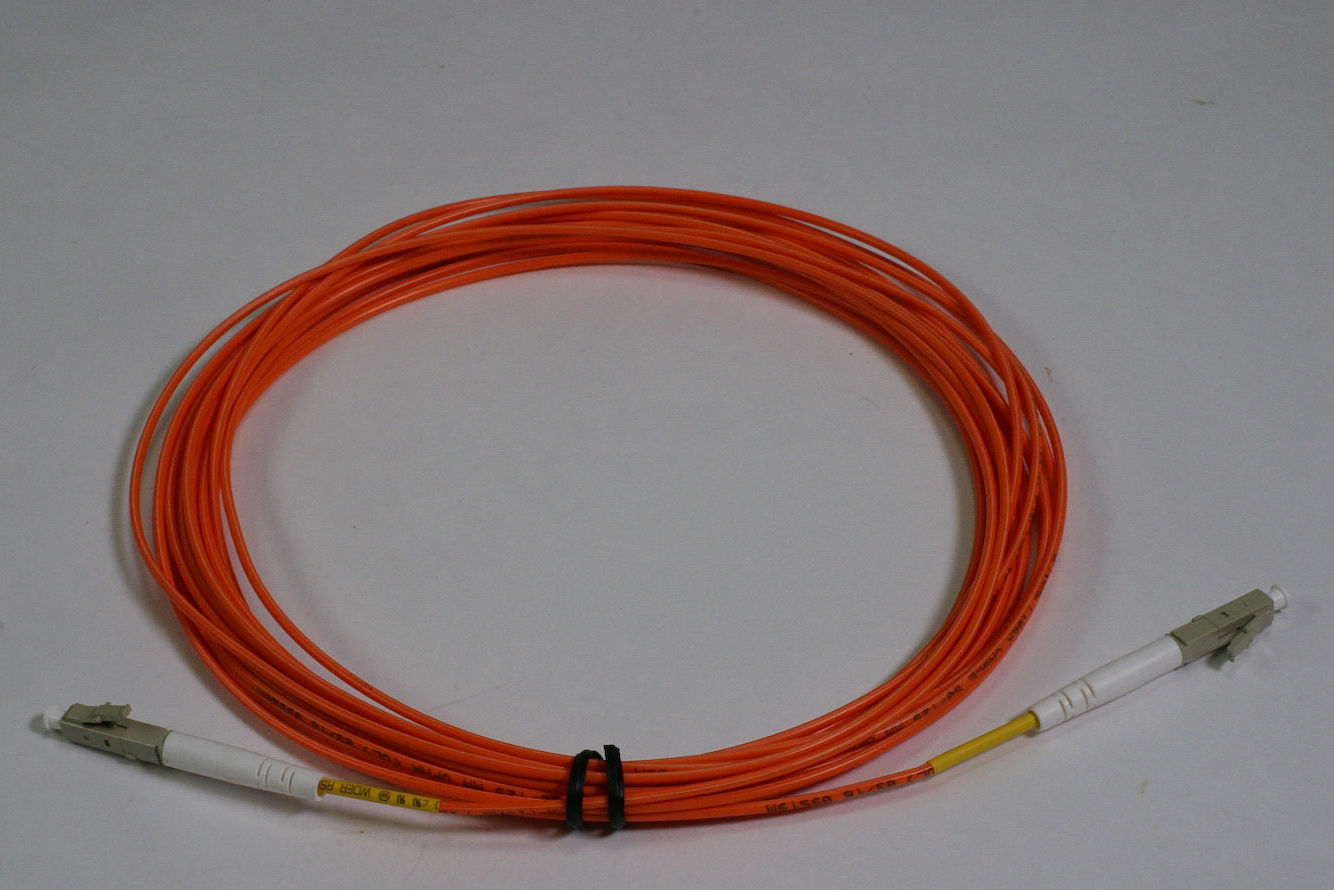

MADI Fiber Optic Cable, 5 meter LC-LC, Multimode OM2, Simplex, 50/125

5 Meter – MADI LC to LC Multimode 50/125 glass fiber optic patch simplex 2.0mm Connector
SKU: FC-LCLC-MS5-10M
Availability: Availability Special Order Only
$40.00 excl tax
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Delivery date: 7 to 10 Days

MADI Fiber Optic LC Patch Cables, Multimode, OM2, Simplex, 50/125

These MADI Multimode fiber optic patch cables are 50-micron diameters for the actual glass core. With the cladding layer, they are 125 microns. The connector is a 2.0mm if the cable has an LC connector.

The cable is 50/125 glass and are classified as OM2 fiber, which means at 850nm (wavelength of the light source), they have a bandwidth of 500 MHz-km, maximum attenuation of 2.3dB/km, and a typical maximum distance of 300 meters (at 100mbps) or 600 meters (at 1000mbps).

At a wavelength of 1300nm, they have a bandwidth of 500 MHz-km, max attenuation of 0.6dB/km, and typical max distance of 2km (at 100mbps) and 600 meters (at 1000mbps).

These are simplex cables (one fiber and one connector at each end).

These 50/125 fiber cables are optimized for laser light sources and gigabit speeds (1000mbps).

Specifications:
Insertion Loss <=0.2dB (Max), <=0.1dB (typical); MTRJ <=0.5dB (Max)
Durability: >500 matings with <0.2dB increase
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +70°C
Cable: OFNR riser rated, Orange, OM2, 2mm or 3mm OD. LSZH, Plenum, and OM1/OM3/OM4 are also available

Each cable assembly is 100% factory tested to meet Telcordia GR326-CORE standards.
