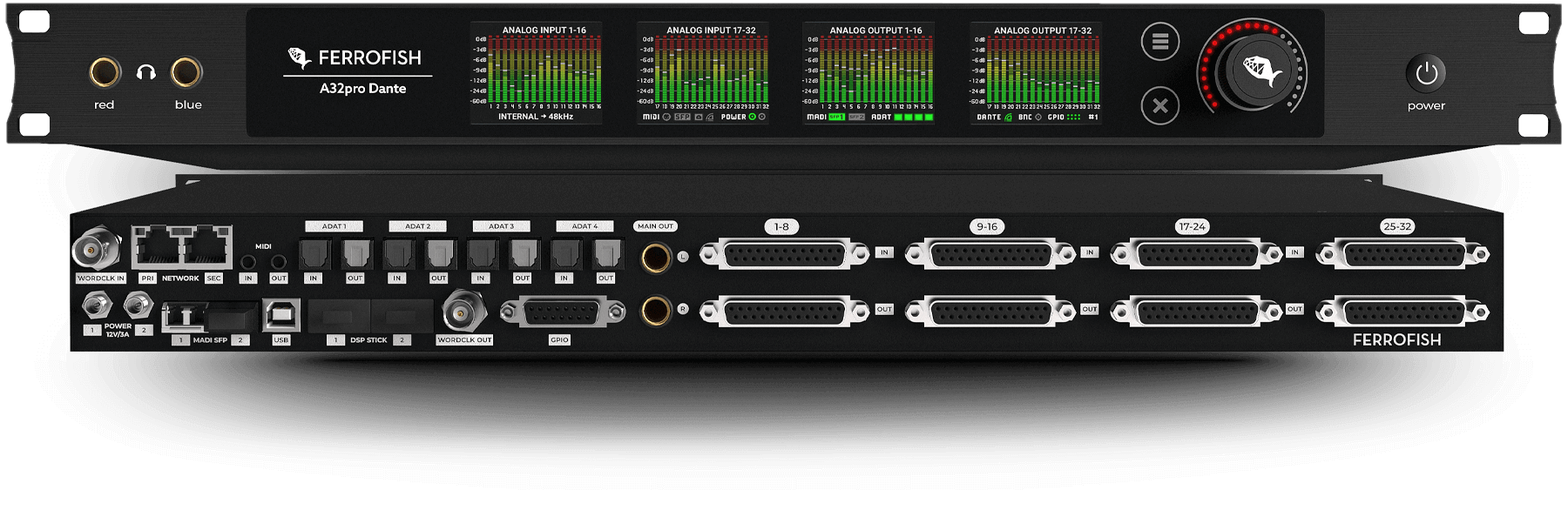

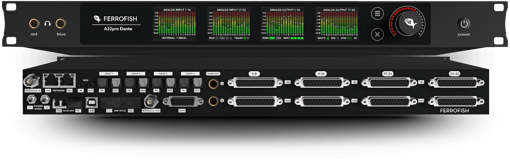

Ferrofish A32 Pro Dante

Manufacturer: Ferrofish

Be the first to review this product

32 In/32 Out AD/DA Converter with Dante, Coaxial and Multi Mode MADI and Adat

SKU: A32 Pro Dante

Availability: Availability Contact for availability

$3,899.00 excl tax

Qty:

i h

Delivery date: SPECIAL ORDER - 2 to 4 Weeks

Connect everything. With anything.

Life saver, problem solver, flexibility champion. The A32pro Dante is a worldwide unique solution to convert and route all important PRO-Audio formats with the highest possible I/O density in a single HU rack device: Analog, MADI, ADAT and Dante/AES67 – all with up to 192 kHz.

The incredible flexible converter provides 32 balanced analog I/Os in D-Sub25 format with pro studio levels up to +20dBu – adjustable in 1 dB steps.

High-Quality analog conversion: with the latest high-performance low-latency converter generation from ESS, the device sets a new milestone for multi-channel conversion. Combined with a temperature-compensated high-precision clock and an active jitter reduction hardware design, the 388-channel behemoth delivers an exceptional detailed sound.

A total of four multitouch TFT screens show the levels of all 64 channels. A sophisticated help system provides context-sensitive help for the selected function at all times.

Remote Control by the RemoteFish App (PC and Mac) is also possible via USB (USB-over-MIDI), MIDI, MIDI-over-MADI and via Dante.

MADI: The A32pro Dante comes with two redundant MADI SFP ports (64 fully routable channels). Any combination of optical and/or BNC SFP modules can be used. The device ships with a single optical Multimode I/O module, supporting 64 channels at 48 kHz.

ADAT: 2 x 4 TOSLINK ports – port 4 switchable to SPDIF – can convert all 32 analog I/Os.

The A32pro Dante provides a Word Clock I/O and a classic MIDI I/O for embedding signals and remote control of the unit. On top of it: GPIO, intuitive one-knob control, Preset Management, Panel Lock and a powerful cross-format routing matrix (see below). The A32pro Series can also operate as a highly flexible digital audio signal router.

Additionally two headphone outputs on the front and an analog stereo output on the back can be used to monitor any channel, sending it to several (different) destinations.

All in all the fan-less, small footprint Smart Converter & Routing system is a huge problem solver for studio and live sound applications. The efficiency puzzle for live, studio and broadcast is solved – finally.

The high density Multi-Format-Rack-Unit:
388 tightly integrated channels in a concentrated package.
Including 2 x Headphones and main outs.

A32pro Dante Specifications

Dante I/O

2 x RJ-45 Ethernet connector (CAT5/6 cables),
64 x 64 channel Brooklyn II board built-in.

MADI I/O (AES10)

Dual SFP Slots for MADI: Multimode or Singlemode SFP module as
default configuration, optional second SFP module optional

64 channels @32kHz, 44.1kHz, 48kHz
32 channels @64kHz, 88.2kHz, 96kHz
32 channels @128kHz, 176.4kHz, 192kHz*

* both MADI ports are used to achieve full 32+32 channel transmission Support of MIDI over MADI.

Latency: 3 samples Redundancy: Automatic switching between optical <-> coax MADI when signal lost.

Analog Inputs (AD)

Latest generation of Analog / Digital Converters from ESS Tech.

4 x DSub25 (Tascam format)
Digital gain: +20dBu … -8 dBu, 1dB steps

OpAmps: OPA1604 / OPA1664

Level indicator
TFT screen, 28 levels

Headphones Out

2 x ¼” (6.3mm) TRS jack, stereo with HQ amp section and dedicated DAC path.
Provides an independent stereo channel.
Selectable mono/stereo or M/S decoded source of all inputs and outputs.
Digitally controlled volume level.

ADAT I/O

4+4 optical interfaces (8 channels each with 48 kHz)

32 channels @32kHz, 44.1kHz, 48kHz
16 channels @64kHz, 88.2kHz, 96kHz
n/a @128kHz, 176.4kHz, 192kHz

Latency: 3 samples

GPIO Port

4x General Purpose Inputs for switching Presets #1-4.
4x General Purpose Outputs for monitoring Lock/Power/MADI/Temp alerts.

MIDI I/O

2 x 1/8″ (3.5mm) TRS connector for remote control
Conversion MIDI <> MIDI-over-MADI possible
MIDI 2.0 pinout

Wordclock I/O

BNC: 1 x input, 1 x output
75 Ohm Termination switchable for input

Power Supply

12V, 3A
2 x input jacks with screw lock for redundant power.
Voltage supervision, warning message on screen when PSU input fails
Internal resettable polyfuse
1 x Power Supply included, second PSU optional

USB Port

1 x USB 2.0 for Remote/Updates

Additional Features

192 kHz operation (S/MUX up to 192kHz).
GPIO Port for remote preset switching and alert monitoring
DSP Plugin-ready
A/D and D/A converters with switchable filters
Dual Headphone output for easy monitoring
MIDI over MADI Preset Management
Extensive routing/mixing possibilities.
Redundancy (MADI I/O, Dante I/O, Power Supplies).

Internal Clock

Temperature compensated oscillator, with high accuracy.
Initial accuracy: +/-1.5ppm
Over temperature range: +/-2.5ppm
Aging: +/-1ppm

PLL

Digitally controlled PLL / Jitter reduction system
Output jitter: 50ps … 100ps typ.

LCD Displays

4 x TFT Multitouch Screen User Interface
Two-layer illuminated touch-sensitive high resolution encoder
Highly intuitive control of the unit

Audio Core Processor

SHARC ADSP-2148x series DSP
Routing and processing of of all 384 audio channels.
Source to headphone output.
Calculation of of upcoming audio processing algorithms.

Dimensions

1RU, fanless design
Depth: 31cm (12.6”) (including connectors)

Weight

4.1kg (9 lbs)

Ambient temperature

41°F up to 113°F (+5°C up to +45°C)
