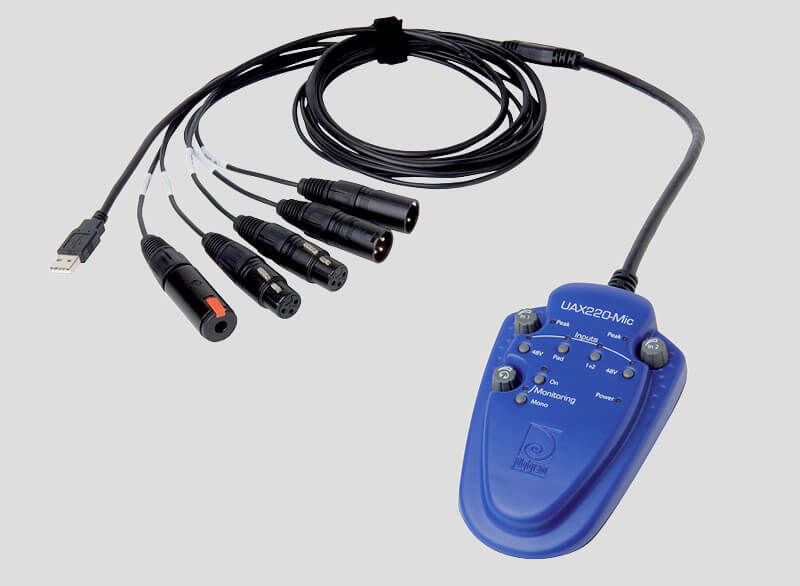

The UAX220-Mic is a professional stereo USB Audio interface designed for broadcast and other demanding pro audio applications that require high quality audio acquisition of microphone level signals. Because it is USB Audio compliant, it can be used with multiple computers (laptop or desktop) and thrid party software applications without installing a dedicated driver.
UAX220-Mic offers 2/2 balanced analog high-quality I/Os. Thanks to the professional grade mic preamps and switchable +48V phantom power on each input, UAX220-Mic is the most efficient Pro Audio interface for portable use.
- USB Audio stereo interface: no driver to be installed
- Bus-powered on USB
- Supported under Windows, Mac OS X, and Linux
- 2 balanced analog mono mic/line inputs, and 2 balanced analog mono outputs +10 dBu max signal level,
- Input gain adjustment from +20 dB to +55 dB with switchable -20 dB input attenuation
- Stereo headphone out with gain adjustment
- Switchable zero-latency direct hardware monitoring (mixed with the playback)
- Push buttons for selection of +48V, pad, left+right mode, and monitoring
CONFIGURATION
Bus/Format: USB 1.1, compatible 2.0
Size: 144 mm X 87 mm X 34 mm, Integrated USB cable: 1.5 m, Integrated audio cable: 0.75 m
Power consumption: 500 mA max
Operating: temp / humidity (non-condensing): 0°C / +50°C • 5% / 90%
Storage: temp / humidity (non-condensing): -5°C / +70°C • 0% / 95%
Inputs
Analog line inputs (mono):
2 balanced mic/line with:
– professional high-quality preamps
– switchable 48 V phantom power supply (mono)
Maximum input level/impedance: +10 dBu / >10 kOhms
Maximum sensitivity: -45 dBu
Outputs
Analog line outputs (mono): 2 servo-balanced
Maximum output level / impedance: +10 dBu / <100 Ohms
Programmable output gain: from -60 dBr to +10 dBr, by steps of 1 dB
Other outputs: 1 stereo headphones output with dedicated output stage and level adjustment knob (Maximum output power/minimum load: 2*40 mW / 32 Ohms)
Connectors
External connectors:
– Standard USB type A for connection with computer
– 2 Neutrik™ XLR-3 female for Mic/line inputs
– 2 Neutrik™ XLR-3 male for line outputs
– Locking ¼” Neutrik™ female cable jack for headphones output
Audio Specification
Sampling frequencies available: 32 / 44.1 / 48 kHz
A/D and D/A converter resolution: 24 bits
Supported audio formats: PCM (8, 16 et 24 bits, full-duplex)
Operating modes: Either selected by application or user-selectable at a fixed resolution (modes selected via UAX Manager application)
Monitoring: Zero latency hardware monitoring mixed with playback to the line and headphones outputs
Monitoring control: On/off and mono/stereo push buttons
Analog audio performance
Frequency response (record + play): 20 Hz – 20 kHz: ±0.2 dB
Channel phase difference: 20/20kHz: <0.2°/2° Dynamic range (A-weighted): – Input: >100 dB
– Output: >104 dB
THD + noise 1 kHz at –1 dBfs:
– Input: <-93 dB
– Output: <-97 dB
– Loop: <-92 dB
Crosstalk (Analog in or out):
– 1 kHz: <-110 dB
– 15 kHz: <-95 dB
Number of mic inputs: 2 analog mono with switchable 48V phantom power supply
Programmable mic gain: +20 to +55 dB by knob with switchable -20 dB input attenuation
48 V power supply: 2*5 mA max
Equivalent Input Noise, A/D-D/A at 48kHz, G=+50dB: <-125 dBu
ENVIRONMENTS
Supported operating systems: Windows, Mac OS X, Linux
Management: Depending on the host operating system’s implementation of the USB Audio specification: DirectSound, Core Audio, ALSA
Additional management: Digigram np SDK through Virtual PCX Third-party Asio driver
