    Manufacturer: Digigram

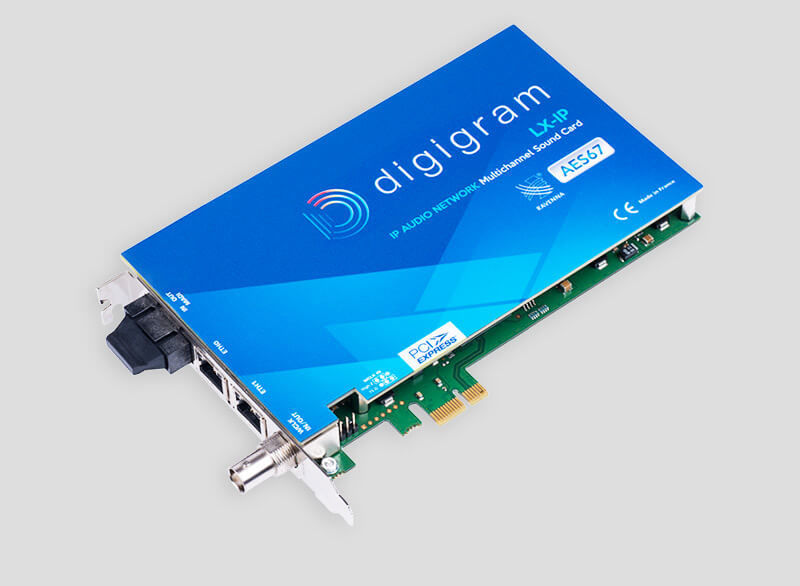

    PCIe card with 2x Ravenna/AES67 ports (128 in / 128 out) for Windows and Linux
    SKU: LX-IP
    $3,290.00 excl tax
    i h
    Ship to
    Shipping Method
    Estimated Delivery
    No shipping options
    Delivery date: SPECIAL ORDER - 2 to 4 Weeks

    LX-IP provides the perfect gateway from mission critical applications to RAVENNA and AES67 AoIP networks. Its 64 channels, 0.5 ms latency and phase accuracy match all requirements for high density, ultra-low latency on-air or production studio workflows. Hardware-based architecture maintains performance regardless of the computational load of other applications running on the host system.
    LX-IP with MADI optional interface provides a seamless migration path from legacy digital audio to AoIP and provides all MADI features described below.

    • High channel count, ultra-low latency and phase-accurate audio distribution on synchronous AoIP networks
    • Phase-accurate clock synchronization between digital audio and AoIP networks
    • Interoperability with traditional digital audio
    • Performance & stability independent of PC applications
    • Mission critical reliability
    • Play/record 64 audio channels between a DAW (Digital Audio Workstation) or automation application and AES67 or RAVENNA synchronous AoIP network
    • Play/record 64 channels between a DAW or automation application and digital audio MADI equipment
    • Provides zero-latency routing on-board between 2*64 RAVENNA/AES67 channels, 64 DAW channels and (option) 64 MADI channels
    • Provides PTP Grand Master clock to synchronous AES67 or RAVENNA AoIP network. This Grand Master can be slaved to WordClock or MADI inputs
    • Synchronises RAVENNA/AES67 AoIP streams on external PTP clock. The MADI output and WordClock clocks can be slaved to the external PTP clock
    • 64/64 Record/Play channels on PCIe bus
    • 64/64 AES67/RAVENNA I/O channels on each of the two Gigabit Ethernet interfaces
    • 64/64 I/O MADI (AES10) optical channels (option)
    • Ultra-low sub-millisecond round trip latency
    • Fully compliant with AES67 interoperability recommendations, including Unicast SIP support
    • Packet size from 128 down to 1 audio sample per RAVENNA packet
    • Local clock eligible as PTP Grand Master
    • Zero delay embedded routing matrix for AoIP / MADI / PC channels
    • Performance maintained regardless of the computational load of applications running on the host system
    • Fully configurable through Web user interface and EMBER+ protocol


    Bus/Format: PCI Express(R) x1 (compatible x1, x4, x8, x16 slots)
    Size: 111.15 mm x 167.65 mm x 20 mm
    Power requirements (+3.3V/+12V): 0.4 A / 0.12 A
    Operating: temp / humidity (non-condensing): 0°C / +50°C • 5% / 90%
    Storage: temp / humidity (non-condensing): -5°C / +70°C • 0% / 95%

    Inputs and Outputs

    – 2 Gigabit Ethernet RJ45 ports for RAVENNA I/O (dual port or Primary / Back up mode)
    – 1 optical connector for MADI I/O (Factory option) (multimode, 1300nm)
    – 1 BNC for Word Clock In / Out
    RAVENNA I/O channels: 2 banks of 64/64 I/O (Mono) channels at 44.1 kHz or 48 kHz (64/64 I/O on each Gigabit Ethernet interface)
    RAVENNA packet size: From 128 down to 1 (ultra-low latency profile) audio samples per RAVENNA packet
    AES67 compliance: Full compliance in all respects with AES 67
    Supported audio payload formats: PCM16 / PCM24 / PCM32 / AM824 (PCM24+AES3 channel status)
    PC Record/Play channels: 64/64 simultaneous Record/Play (Mono) channels to/from PC
    MADI (Multichannels Audio Digital Interface) inputs and outputs:
    – Optical I/O connector, 64/64 I/O (Mono) at 48 kHz sampling frequency and 32/32 I/O (Mono) at 96 kHz
    – (Factory option)
    Word Clock input or output
    – BNC connector, Input or Output position selectable by software.
    – Input: TTL , impedance selectable by jumper (75 Ohms / HighZ).
    – Output: Max 5 Vpp, 75 Ohms output impedance
    Clock sources:
    – PTPv2 (IEEE1588-2008) from network or internal clock or Word Clock or MADI input
    – Local clock eligible as GrandMaster PTP
    – Local clock precision : better than 10 ppm
    Sampling frequencies:
    – From local clock: 44.1 kHz, 48 kHz and 96 kHz (MADI)
    – From network or Word Clock: 44.1 kHz, 48 kHz and 96 kHz (MADI)
    – From MADI: 44.1 kHz, 48 kHz, 96 kHz

    Control and routing

    – HTTP (web pages from embedded server)
    – EMBER+
    Routing: Zero latency on-board routing matrix between RAVENNA, PC Rec/Play and optional MADI channels


    Latency: Round trip time down to 0.8 ms (excluding IP network)
    Supported operating systems: Windows 10, 8 and 7 32/64bits, Windows server 2003/2008, Linux
    Supported drivers: ASIO, WASAPI / low latency WDM DirectSound, ALSA
