    Manufacturer: Digigram

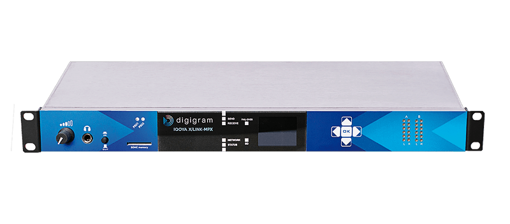

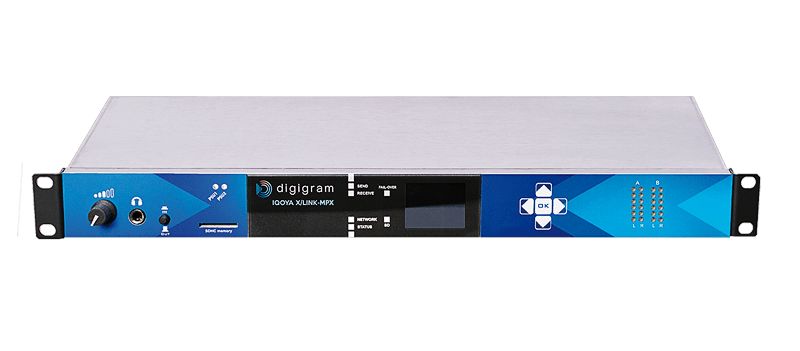

    1U rack IP codec designed for the transport (encode/decode) of an FM / MPX mono analog, 1x stereo AES/EBU AES67/Ravenna/Livewire (no LCD)
    $3,250.00 excl tax
    i h
    Ship to
    Shipping Method
    Estimated Delivery
    No shipping options
    Delivery date: SPECIAL ORDER - 2 to 4 Weeks


    MPX FM composite signal over IP

    ANALOG/Digital, Ravenna MPX/FM I/O < > 4 x LAN/WAN

    IQOYA X/LINK-MPX is the 1U rack IP codec that will ease your life when transporting an FM-MPX composite signal over IP networks: powerful and reliable, you can lean on our codec for your operations. Transport your MPX signal and get a monitoring IP audio stream from your transmitter sites and get return monitoring audio streams from the transmitter sites. Easy integration into existing SNMP based supervisors (SET, GET, Traps). Lower your CAPEX: no need for sound processors, RDS and stereo encoders at transmitter sites.
    Lower your OPEX: less power consumption, less space required, and less maintenance operations at transmitter sites.

    • Flexible for enlarged applications. Analog or Digital MPX over IP.
    • Reliable IP transport with FECs. Plus dual streaming and adjustable jitter buffer.
    • Transmission hiccup free. No service interruption ever thanks to 2 backup levels for decoding on transmitter sites (backup IP MPX stream, sound files /playlists on SDHC card)
    • µMPX compression for a low IP bitrate. From 320 to 576 kbps.
    • Analog (BNC) and Digital (XLR) MPX Inputs and Ouputs
    • Optional µMPX compression
    • Dual streaming, FEC and 2 backup levels
    • 4 Ethernet (management, AoIP on LAN, WAN streaming)
    • Two redundant internal power supply units Designed for 24/7 operations Reliable and rock-solid


    2 analog inputs & outputs on BNC, max +15 dBu
    1 AES192 MPX input and output
    Line audio
    2 analog inputs & outputs, XLR, +24 dBu max
    Network ports
    3 Gbps / 1 x 100 Mbps, RJ-45
    Auxiliary data
    1 RS232 – 4 GPIOs

    Technical Specifications

    • Dual internal power supply units
    • Duplicated MPX outputs with independent levels adjustment for exciters redundancy
    • Return IP audio monitoring stream
    • Tunneling of auxiliary data
    • 2 backup MPX sources in decoding
    • Backup sources: MPX IP stream (compressed or uncompressed), MPX file stored on an SDHC card inserted from the front panel
    • Fanless, low consumption
    • Front panel LCD display and keypad
    • Front panel headphones (6.35mm female jack)
    • Front pane SDHC card reader
