FLX-Dante
64×64 @ 48kHz
32×32 @ 96kHz
16×16 @ 192kHz
plus additional AUX channels depending on AUX card
FLX-MADI
128×128 @ 48kHz
64×64 @ 96kHz, 32×32 @ 192kHz
FLX-AES3
16×16 @ 48/96/192 kHz (Single-wire)
8×8 @ 96kHz, 8×8 @ 192kHz (Dual wire), 4×4 @ 192 kHz (Quad wire)
FLX-AES50
96×96 @ 48kHz
32×32 @ 96kHz

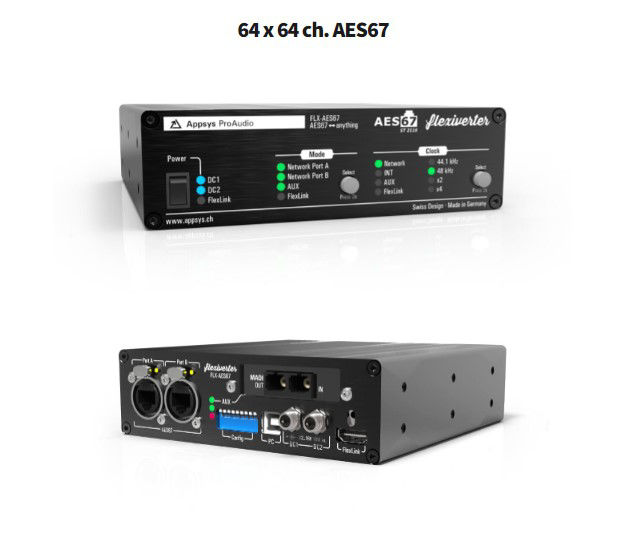

FLX-AES67
64×64 @ 48kHz
32×32 @ 96kHz
16×16 @ 192kHz
AUX-ADAT
16x16ch ADAT I/O (2x Toslink In+2x out). Supports also S/PDIF.
AUX-AES3
8x8ch AES3 I/O on 1x DB25, fully transformer isolated
AUX-AES67
64x64ch AES67 network card
AUX-AVB
16x16ch / 32x0ch / 0x32ch MILAN-approved AVB
AUX-DANTE
64x64ch DANTE network card
AUX-MADI-COAX/OPTO/SFP
64x64ch, supports 56/57/64 channel mode + user bit transparency
