    AppSys Flexiverter AES3

    Manufacturer: AppSys
    16x16 channel format converter for AES/EBU
    SKU: FLX-AES3
    $999.00 excl tax
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Delivery date: SPECIAL ORDER - 2 to 4 Weeks

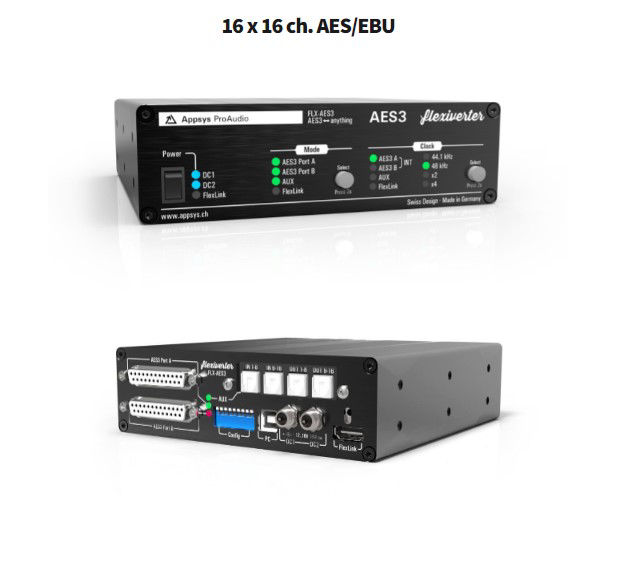

    AppSys Flexiverter AES3 16x16 channel format converter for AES/EBU

    Flexiverter SERIES Multi-format. Highly Affordable. Most flexible.

    ULTRA-COMPACT CONVERTERS
    + SWITCHABLE FORMAT BOARDS

    A Flexiverter is an ultra-compact box with a main format, dual power supply and a slot for a switchable AUX board, which adds the conversion format to the FLX unit. At the moment 5 FLX units and 10 AUX boards are available.

    Pick two of these formats and combine them in one 9.5 inch Flexiverter box:

    DANTE MADI
    OPTICAL/COAXIAL/SFP
    AES3
     ADAT 8X8
    AVB
    Analog OutAES50AES67
    Format combinations provide the most common conversions with improved features and unique pairings
    (e. g. AES50 <> Dante, Dante <> Dante SRC, Dante <> AVB).

    Flexiverter series specifications

    Dimensions
    152x44x153mm (WxHxD) excluding connectors/buttons
    152x44x169mm (WxHxD) including device-side connectors/buttons
    Weight
    560 g

    Power consumption

    +15V DC, 9W max (18W to power two devices via FlexLink)Triple-redundant input (2x DC, 1x via FlexLink)
    Cable length
    FlexLink 1m / 3ft. max. recommended

    Sample rates

    32 / 44.1 / 48 / 64 / 88.2 / 96 / 128 / 176.4 / 192 kHz

    Channel count

    FLX-Dante
    64×64 @ 48kHz
    32×32 @ 96kHz
    16×16 @ 192kHz
    plus additional AUX channels depending on AUX card

    FLX-MADI
    128×128 @ 48kHz
    64×64 @ 96kHz, 32×32 @ 192kHz

    FLX-AES3
    16×16 @ 48/96/192 kHz (Single-wire)
    8×8 @ 96kHz, 8×8 @ 192kHz (Dual wire), 4×4 @ 192 kHz (Quad wire)

    FLX-AES50
    96×96 @ 48kHz
    32×32 @ 96kHz

    FLX-AES67
    64×64 @ 48kHz
    32×32 @ 96kHz
    16×16 @ 192kHz

    AUX-ADAT
    16x16ch ADAT I/O (2x Toslink In+2x out). Supports also S/PDIF.

    AUX-AES3
    8x8ch AES3 I/O on 1x DB25, fully transformer isolated

    AUX-AES67
    64x64ch AES67 network card

    AUX-AVB
    16x16ch / 32x0ch / 0x32ch MILAN-approved AVB

    AUX-DANTE
    64x64ch DANTE network card

    AUX-MADI-COAX/OPTO/SFP
    64x64ch, supports 56/57/64 channel mode + user bit transparency
