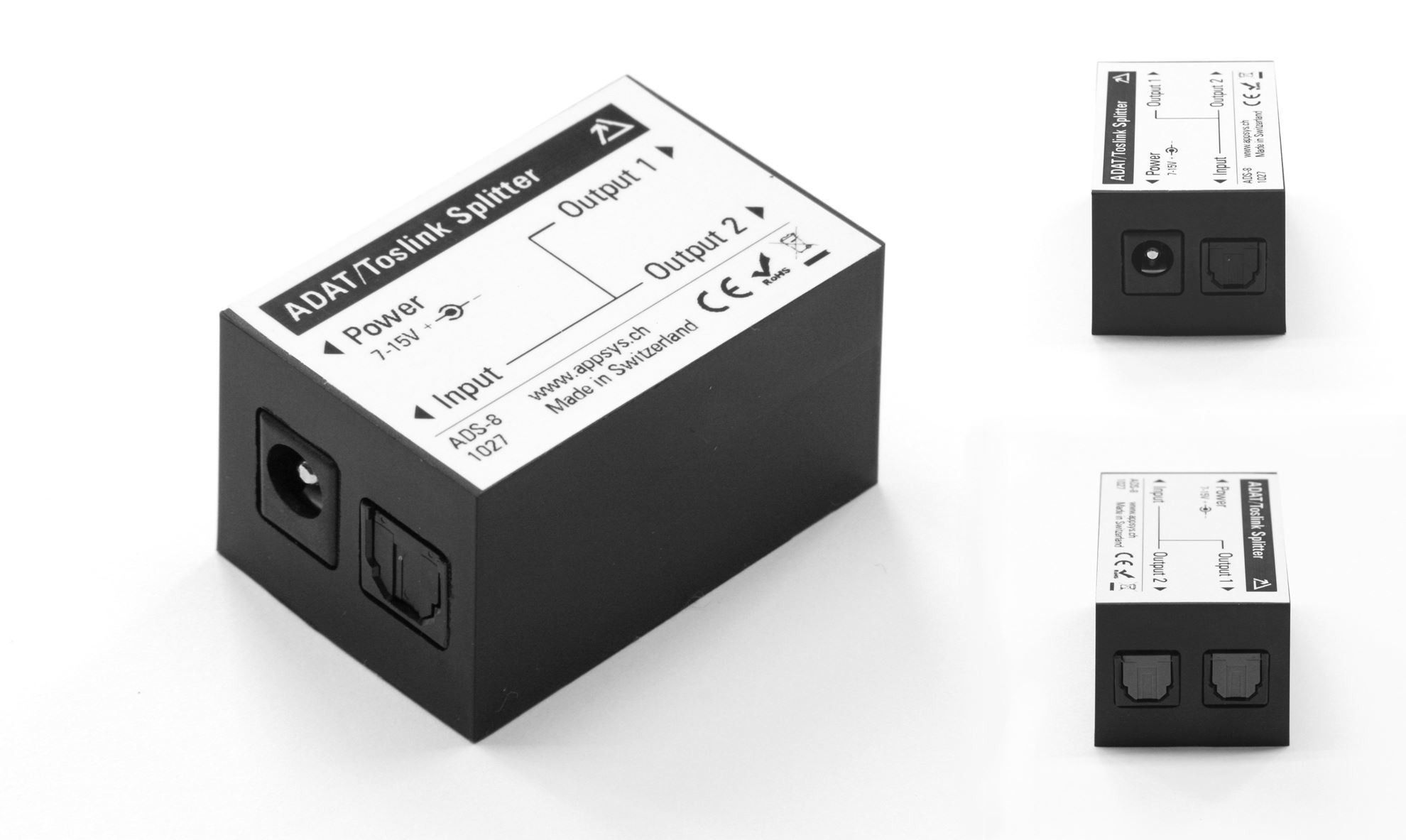

AppSys ADS-8 Active ADAT/Toslink-Splitter & Repeater

Active ADAT/Toslink-Splitter & Repeater
Manufacturer: AppSys
SKU: ADS-8
$69.00 excl tax

Available in the US
This product is available for shipping or download to United States customers



Available in Canada
This product is available for shipping or download for Canadian customers

Active ADAT/Toslink-Splitter & Repeater

The ADS-8 ADAT/Toslink Splitter allows you to connect any signal source to two sinks. The active design overcomes the limitations of traditional passive splitters: They essentially half the amount of light on each output, causing problems because the attenuated signal is too weak for proper transmission of high-speed data. In contrast, the ADS-8 receives the optical signal, converts it to an electrical signal which can be split without loss to the out put transmitters which operate on each port with full power. As a side effect, it acts as signal repeater which doubles the reach of each connection.



Features

  • Reliable, lossless, true bit-transparent splitting of any signal
  • Doubles maximum transmission distance of an optical connection from normally 5-10m to 10-20m, depending on the equipment used
  • Near-zero latency (< 1µs)
  • All channels present on the input are available on both outputs
  • Compatible with all audio formats which can be sent over TOSLINK
  • Quality product "Made in Switzerland"

Includes

  • Splitter (1 input -> 2 outputs)
  • AC adapter in "green" switching technology
  • Printed manual

Specifications

ParameterValue
Input/Output Optical connector, F05 Type TOSLINK®compatible
Transmitted audio formats ADAT, SPDIF, Dolby Digital ® 5.1 and other TOSLINK compatible formats (up to 96 kHz sample rate/15 Mbit data rate)
Power supply 9..12VDC 50mA
Plug:ID=2.5mm OD=5mm Length=9mm Polarity: Center Positive

Active ADAT/Toslink-Splitter & Repeater

The ADS-8 ADAT/Toslink Splitter allows you to connect any signal source to two sinks. The active design overcomes the limitations of traditional passive splitters: They essentially half the amount of light on each output, causing problems because the attenuated signal is too weak for proper transmission of high-speed data. In contrast, the ADS-8 receives the optical signal, converts it to an electrical signal which can be split without loss to the out put transmitters which operate on each port with full power. As a side effect, it acts as signal repeater which doubles the reach of each connection.



Features

  • Reliable, lossless, true bit-transparent splitting of any signal
  • Doubles maximum transmission distance of an optical connection from normally 5-10m to 10-20m, depending on the equipment used
  • Near-zero latency (< 1µs)
  • All channels present on the input are available on both outputs
  • Compatible with all audio formats which can be sent over TOSLINK
  • Quality product "Made in Switzerland"

Includes

  • Splitter (1 input -> 2 outputs)
  • AC adapter in "green" switching technology
  • Printed manual

Specifications

ParameterValue
Input/Output Optical connector, F05 Type TOSLINK®compatible
Transmitted audio formats ADAT, SPDIF, Dolby Digital ® 5.1 and other TOSLINK compatible formats (up to 96 kHz sample rate/15 Mbit data rate)
Power supply 9..12VDC 50mA
Plug:ID=2.5mm OD=5mm Length=9mm Polarity: Center Positive
