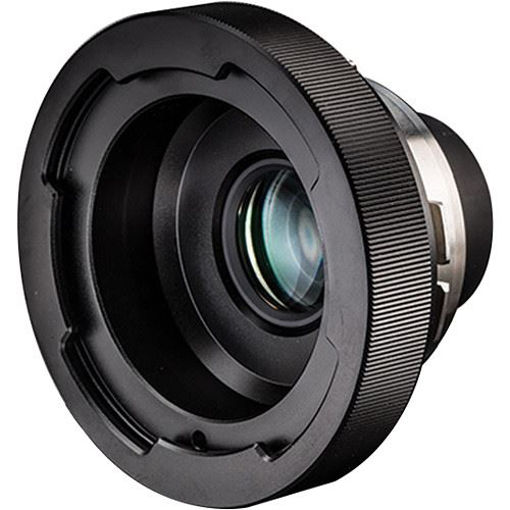

Tokina Cinema 1.6x Expander PL to PL
Tokina created the 1.6x Expander so that cinematographers can use their favorite Super35 PL lenses on the latest full-frame 6K/8K cameras. The Expander increases the diameter of image circle by 1.6x on Super35 PL prime and zoom lenses. This allows for a greater variety of lens choices when filming with cameras like the RED Dragon that has a 46.31mm (8K) diagonal sensor.
Tokina engineers gave special attention to the 7-element optical design to ensure the integrity of the original lens’ performance and to keep light fall off to a manageable 1.36 stops. The all mechanical design is robust, durable, and lightweight.
The Tokina 1.6x Expander performs best when used with lenses that have a T2.0 or larger aperture and when the lens is stopped down to T2.8 or smaller.
SPECIFICATIONS:
|
1.6x Expander ( PL- PL)
|
Focal Length Extension
|
1.6x
|
Optical Structure
|
4 Groups 7 Elements
|
Maximum Diameter
|
φ83mm
|
Weight
|
Approx. 0.3kg
|
Max.Image Input
|
φ29.3
|
Max.Sensor
|
φ46.9
|
Max.Input T-Stop
|
2
|
Lens Mount
|
PL
|
Camera Mount
|
PL
|
