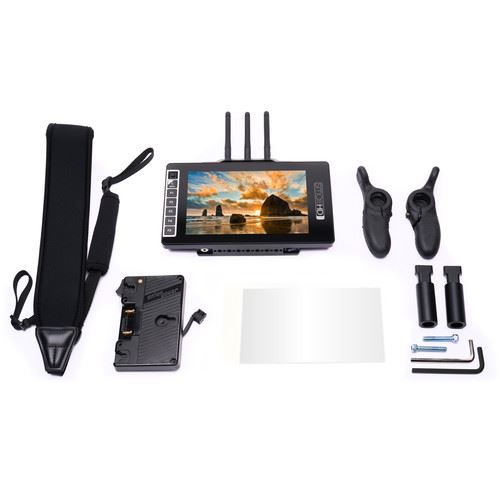

    SmallHD 703 Bolt Wireless Monitor V-Mount Director's Bundle

    Manufacturer: SmallHD
    SmallHD 703 Bolt Wireless Monitor V-Mount Director's Bundle
    SKU: SMALL-MON-703BOLT-VM
    GTIN: 850324007298
    $4,199.00 excl tax
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Delivery date: SPECIAL ORDER - 2 to 4 Weeks

    SmallHD 703 Bolt Wireless Monitor V-Mount Director's Bundle


    7-inch Full HD Monitor with Built-in Wireless HD Receiver


    3000nit daylight viewable monitor/receiver that's compatible with Teradek Bolt 500, 1000, and 3000 transmitters


    Streamlined HD Monitoring - No Cables Required


    SmallHD and Teradek have joined forces to create a wireless monitoring device that’s easy to see, easy to power and easy hold. Easily pair the 703 Bolt with Teradek Bolt 500, 1000, or 3000 transmitters.


    With Teradek wireless technology inside, the 703 Bolt can easily be used as an untethered focusing tool. Its display is tack sharp, and software features like peaking, focus assist, and pixel zoom are easily accessible.


    Bring the 703 Bolt to your video village and easily share its built-in wireless feed with another monitor via SDI. Its versatility on set is truly unmatched.






    Display

















































    Panel TypeIPS LCD
    Resolution1920 x 1080
    Pixel Density (PPI)323 ppi
    Aspect Ratio16:9
    Active Area7.02
    Brightness3000
    Contrast1150:1
    Color Gamut70% NTSC
    Color Depth10-bit
    Viewing Angle178 Degrees (CR<10)
    Backlight TypeWhite LED



    Viewfinder (EVF)









    Variable Field of Viewrange



    Input Signal Types/Formats





















    3G-SDIYCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
    HD-SDIYCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
    SD-SDIYCC 4:2:2 @ 10-bits: 480i29.97, 576i25
    AudioSDI - Monitor through Headphone Jack - Metering up to 8 channels



    Output Signal Types/Formats





















    3G-SDIYCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
    HD-SDIYCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
    SD-SDIYCC 4:2:2 @ 10-bits: 480i29.97, 576i25
    AudioSDI - Incoming Audio Stream is sent downstream via SDI connection



    Wireless





















































    SDI Ancillary DataSupports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to: https://support.teradek.com/hc/en-us/articles/217446087
    Color SamplingFor SDI: YCbCr 4:2:2, 10-bit
    Supported Resolutions1080p60/59.94/50/30/29.97/25/24/23.98 1080psf30/29.97/25/24/23.98 1080i60/59.94/50 720p60/59.94/50 480i(NTSC)/576i(PAL)
    Video CompressionVisually lossless
    Audio Compression48KhZ 24-bit PCM
    SwitchesOn/Off
    Wireless Network5GHz (20&40Mhz), DFS Frequencies Available
    RF Channel SelectionAuto only (NOT configurable)
    EncryptionAES-128
    RF Power15dBm EIRP
    RangeUp to 300ft line of sight
    Noise RejectionCan coexist with WiFi and 5GHz cordless phones



    Connector Type

































    SDI2x 3g Input, 1x 3g Output
    HDMINot Supported
    ComponentNot Supported
    CompositeNot Supported
    Audio1x ‚Öõ” Headphone Jack
    Power In1x Locking LEMO 2-pin Connectors Power Input
    USB1x Proprietary Locking LEMO 5-pin Connectors Power Input



    Controls









    Primary Control InterfaceJoystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons



    Data I/O













    StorageSD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
    USBUSB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving.



    Power

























    Connector Type1x Locking LEMO 2-pin Connectors Power Input
    VoltageWith DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max
    Power ConsumptionTBD
    Recommended Power SupplyIncluded
    Overload ProtectionYes



    Environmental













































    ComplianceFCC, IC, CE, RoHS
    Operating Temperature0 - 100 degrees F
    Storage Temperature-4 - 120 degrees F
    Screen ProtectionAR Coated Gorilla Glass Optical Bonding on Panel
    Width1.21" (3.07cm)
    Depth/Length8.4" (21.34cm)
    Weight (Item Only without battery)32oz (907.18g)
    Weight (Packaged)44.2oz (1253.05g)
    Mount Points1x ¼”-20 Thread on left and right side of Monitor, 7x ¼”-20 Thread on Bottom of Monitor, 7x ¼”-20 Thread on Top of Monitor
    Note:5-inches high without antennas, 9.0 with antennas


    Software

























































































    Pixel Zoom (type)2x & 4x Zoom with smooth pan via joystick
    Frame GuidesYes: Preset Aspect Ratios & Customizable
    DSLR ScaleCanon 5DMkii & Canon 7D
    Custom ScaleYes (Underscan Only)
    Anamorphic De-SqueezeYes: 1.33x, 1.5x, 1.66x, 2.0x
    Image Rotate(Manual/Automatic)Yes - Automatic or Manual Control
    Image Flip (Manual/Automatic)Yes - Automatic or Manual Control
    Focus Assist (Colors)Yes - User Adjustable Color Style and Intensity
    PeakingYes - User Adjustable Intensity
    False ColorYes - Rainbow & Arri Style
    ZebraYes - Dual - User Configurable
    WaveformYes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
    VectorscopeYes
    RGB ParadeYes - Fully User Customizable
    HistogramYes - Luma & RGB Style
    Image CaptureYes - With Dedicated Button
    Custom LUTSYes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
    LUT DownstreamYes - Available on SDI Out. Applied on Output Preview Page.
    LUT Importvia SD Card or USB Storage Device
    Image OverlayYes with Opacity Slider and Blink Setting
    Audio MetersYes - up to 8 channel
