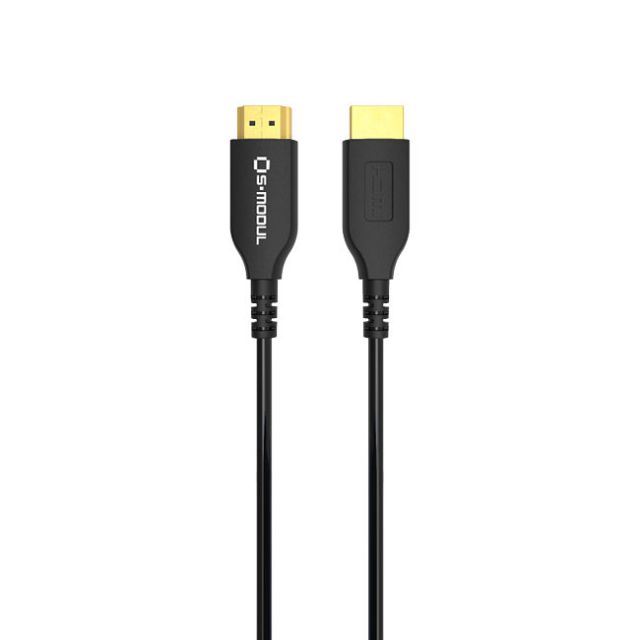

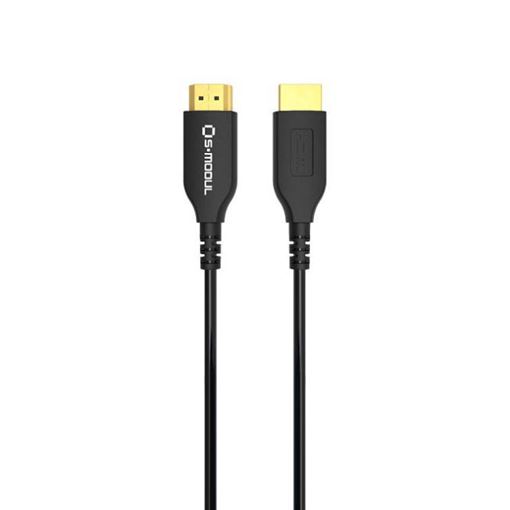

S-MODUL FiHD2.0 series is an HDMI Active Optical Cable (AOC) that has high performance, low power consumption, and is cost effective using optical fiber to replace copper wire for fast and more reliable video transmission. The S-MODUL AOC is capable of transmitting UHD broadband video signal up to 100m, which cannot be transmitted via the conventional coaxial HDMI 2.0 cable.
The rotation diameter of FiHD2.0 optical fiber is 10mm and prevents possible fiber damage compared to a general optical fiber (rotation diameter 30mm). And the flame-retardant materials make this cable perfect for use in more volatile situations where the elements might cause lesser-quality cables to be destroyed. When exposed to a direct flame for 3 minutes, no smoke was emitted or fire spread to any other part of the cable, compared to the competition which was completely destroyed.
ARC (audio return channel), is a feature that sends sound from a source device to a sound system without a separate cable. Without this feature,a user has to add an additional audio cable between a TV and an audio system. Eliminating the need for additional cables simplifies workflows and saves on time and money in the future while also making cable-management a breeze.
HEC (HDMI Ethernet Channel) gives this cable another edge on the HDMI cable market, you get complete ethernet support without any separate LAN cables. HD video, audio and data can be integrated in a single cable, and a high-speedtwo-way communication and IP-based application technology can be realizedthrough this HDMI cable. It is not necessary to connect ethernet LAN cablesindividually to HDMI2.0 supported devices, simply connect it to only one singleHDMI device and connect cables from there to the other devices to enjoy ethernet communication sharing, inter-device content distribution, recording, and digital audio signal two-way transmission.
Endless applications mean this cable can be used in a variety of different fields. Some of the popular uses for these HDMI Optical cables are video conferencing, home theaters, sports screen monitors, digital signage, medical imaging equipment, and more.
- Active Optical Cable
- HDMI 2.0 compliant
- 4K60 4:4:4 HDR video support
- Completely immune to RF and electromagnetic interference.
- Cale Length 1-150m
- LSZH compliant
- Plenum-rated Jacket
- Cable OD 3.5mm
- No Power supply required
- ARC Supported
- Apple TV 4K, MacBook
- Distribution Amplifier, Media Player
- Extender, Converters.
- Gaming Systems, X-BOX One, PlayStation4, PCs and HDMI enabled device
