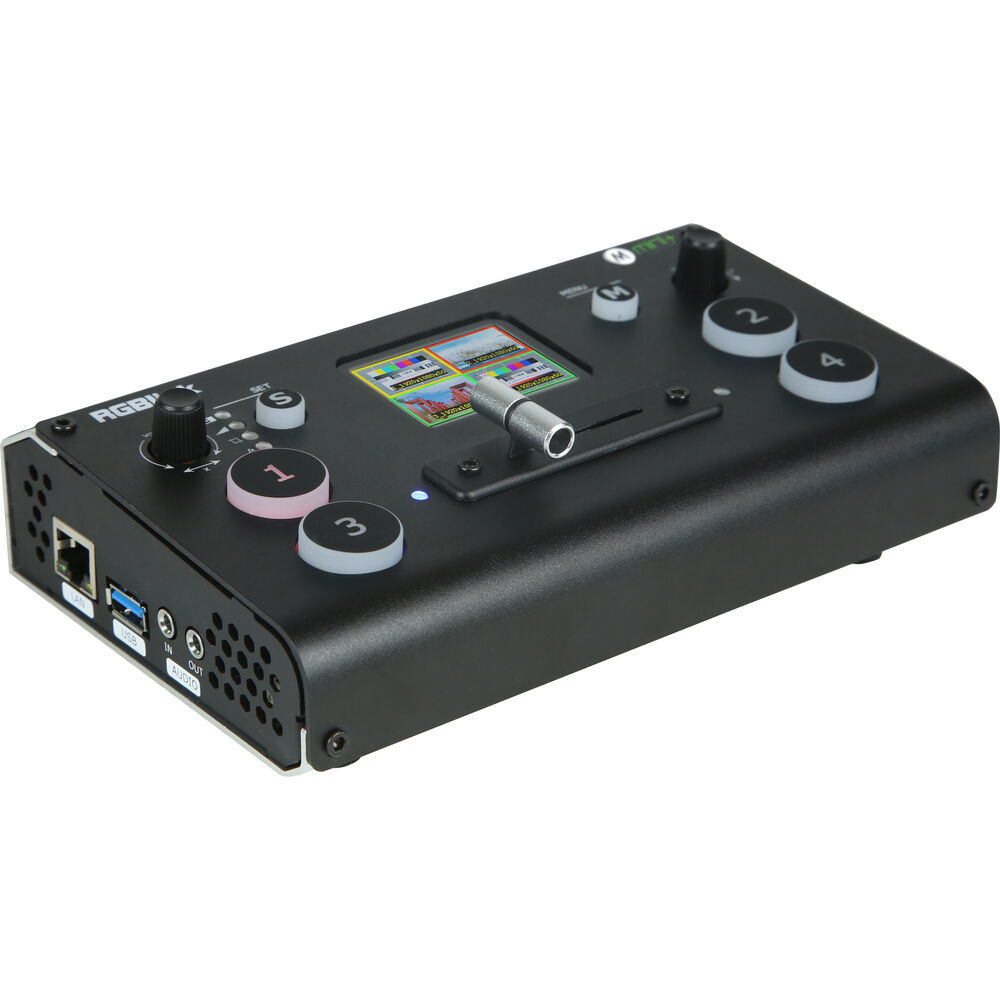

    RGBlink Mini+ Streaming Switcher

    Manufacturer: RGBlink
    4-Channel HDMI Live Streaming Production Switcher with DSK and PTZ Control
    SKU: RGBLMINIPLUS
    GTIN: 697044770191
    Old price: $499.00 excl tax
    $459.00 excl tax
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Delivery date: 7 to 10 Days

    Mini makes the sophisticated simple. Switch seamlessly between any of the four HDMI inputs and output to both HDMI and the dedicated USB 3.0 output, mini is equally ideal for live streaming applications and presentations, allowing multiple sources to be utilized for a professional impression every time. On board features include PIP,  transition effects, and external audio embedding and with the mini+ feature pack there is support for Sony VISCA PTZ cameras and DSK. Large buttons make quick actions easy, while the provision of the T-bat allows smooth transition between sources, whether they be cameras or graphics. Compact in size, mini goes anywhere, and with handy features like the ability to mount to standard 1/4 in UNC accessories. Mini is at home in any studio.

    Key Features

    • USB 3.0 live streaming port
    • Compact design
    • Live preview of four inputs
    • Seamless switching
    • Auto cut and manual switch
    • Transition effects
    • PIP (Picture-In-Picture) presets
    • DSK/Chromakey
    • Apply LOGO
    • Audio insert/extract
    • HDMI output as PGM or Multi-view
    • Control remotely from app
    • Remote control of PTZ cameras
    • Support for third party apps including OBS Studio

    SPECIFICATIONS



    Connectors

    Input

    HDMI

    4 x HDMI-A

    Output

    HDMI

    1 x HDMI-A

    USB 3.0

    1 x USB Type A

    Audio

    In

    1 x 3.5mm Stereo Jack

    Out

    1 x 3.5mm Stereo Jack

    Communications

    LAN

    1 x RJ45

    Power

    1 x DC Jack

    Performance

    Input Resolutions

    HDMI

    SMPTE

    720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60

    VESA

    1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60

    Output Resolutions

    HDMI

    SMPTE

    720p@50/60 | 1080p@24/25/30/50/60

    VESA

    1024×768@60 | 1280×720@60 | 1280×768@60 | 1280×1024@60 | 1360×768@60

    USB Streaming

    1280×720@50/60 | 1280×1024@60 | 1360×768@60 | 1920×1080@24/25/30/50/60

    Note: Refer connected computer for applicable resolution support

    Supported Standards

    HDMI

    1.3

    USB

    3.0

    H.265

    ITU-T H.265 | ISO/IEC 23008-2

    PTZ

    VISCO

    Power

    Input Voltage

    DC 12V/1.5A (via Plug Pack supplied)

    Max Power

    18W

    Environment

    Temperature

    -0℃~70℃

    Humidity

    10% ~ 85% RH

    Physical

    Weight

    Net

    Device

    0.5kg

    Packaged

    1pc

    1.25kg

    10pcs

    13.00kg

    20pcs

    24.00kg

    Dimensions

    Net

    Device

    180mm x 113mm x  49mm

    Packaged

    1pc

    255mm x 145mm x  85mm

    10pcs

    490mm x 305mm x 345mm

    20pcs

    565mm x 490mm x 345mm
