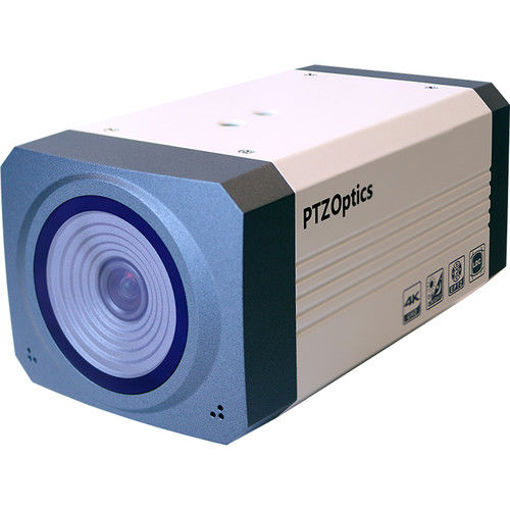

The PTZOptics EPTZ ZCAM is a 1080p at 30fps camera with a 4K image sensor for capturing HD images at short distances. With support for 3G-SDI & IP streaming, this camera is ideal for delivering high definition video signals to broadcast or live streaming applications.
KEY FEATURES
- Panasonic 1/2.5” HD CMOS Sensor
- Full 1920x1080p HD Resolution up to 30 FPS
- 104° Horizontal Field of View
- 2D & 3D noise reduction
- Simultaneous Dual 3G-SDI & High Definition IP Output
- Dual SDI output (Full view / EPTZ view)
- H.264, H.265 & MJPEG IP streaming outputs
- RTMP / RTMPS & RTSP
- AAC Audio encoding over RTSP and RTMP
- Dynamic / Static IP addressing (Hold D-Pad left for 5+ sec to toggle)
- High performance in low light scenarios
- RS-485 & VISCA over IP available for camera control
- Four (4) Std 1/4-20 female threads for camera mounting
- PoE (Power over Ethernet or 12VDC
- 3-year warranty
CAMERA AND LENS
- Video Sensor 1/2.5” CMOS, 8.51 Mega Pixels
- Frame Rate 1080p-30/25, 1080i-30/25, 720p-30/25
- Focal Length F=2.8mm
- Digital Zoom Up to 8x
- Field of View 104°
- Mix Lux 0.5 Lux at F1.8, AGC ON
- Shutter Speed 1/30s – 1/10000s
- SNR ≥55dB
- Vertical Flip & Mirror Supported
- Horizontal Angle of View 42° (tele) – 104° (wide)
- Vertical Angle of View 24° (tele) – 65° (wide)
- Working Environment Indoor
REAR BOARD CONNECTORS
- SDI Output 1 Full Camera View
- SDI Output 2 EPTZ Video Feed
- Video Output Interface 3G-SDI, IP (RTSP / RTMP)
- Communication Interface RS485 VISCA, Pelco-D, Pelco-P
- Baud Rate 2400/4800/9600 bits
- Power Supply Interface JEITA type Power Adapter (DC in 12V)
PHYSICAL SPECIFICATIONS
- Dimensions (in.) 2.8W x 2.4H x 5.6D (6.3 w/ SDI)
- Dimensions (mm.) 72W x 60H x 143D (162 w/ SDI)
- Camera Weight 1.4 lbs. | 0.63 kg
- Box Dimensions (in.) 9.5W x 4.625D x 4.3H
- Box Dimensions (mm.) 241.3W x 117.5D x 109H
- Box Weight 2.0 lbs. | 0.90 kg
