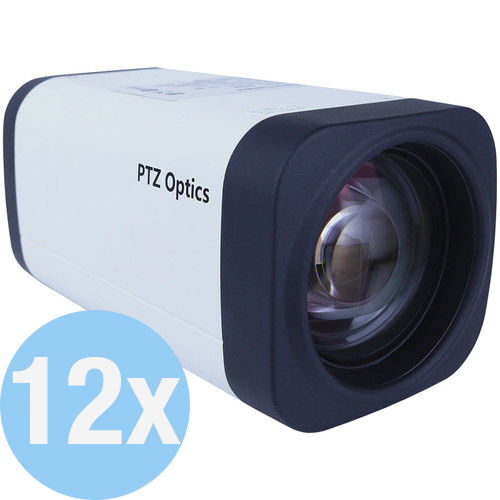

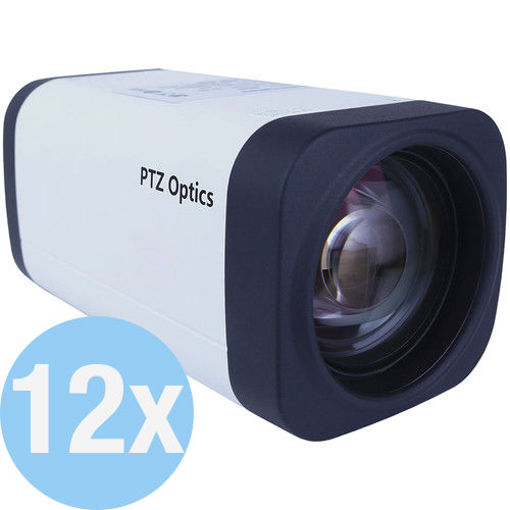

Designed for broadcast and videoconferencing, the 12X-ZCAM 1080p Box Camera with 12x Zoom Lens from PTZOptics captures and streams up to 1080p60 resolution video in H.264, H.265, and MJPEG codecs. You can output the signal via the camera's 3G-SDI output or RJ45 network interface. The integrated 3.5-42.3mm 12x zoom lens offers a 72.5 to 6.9° angle of view.
The camera is low-light sensitive for optimal image capture and is complete in this regard with 2D/3D noise reduction and WDR. It can be wall-mounted via the onboard 1/4"-20 mounting port using an optional mounting arm or other support. A power supply is included, in addition to which PoE is supported for powering the camera via a connection to a network switch. The camera can also be remote controlled over IP or RS-485. PTZOptics Mac/Windows software is offered as a free download that allows you to see the camera feed and change settings.
- 2MP Panasonic 1/2.7" CMOS sensor
- 3G-SDI video output
- IP streaming output (dual stream) in H.264, H.265, and MJPEG
- AAC stereo unbalanced audio encoding over IP
- Minimum illumination 0.5 lux at f/1.8 with AGC on
- Up to 1920 x 1080p resolution at 60 fps via SDI
- 2D and 3D noise reduction
- Wide dynamic range
- Menu controls on the rear
- RS-485 and IP remote control support
- 3.5-42.3mm lens with f/1.8-2.8 aperture
- 72.5 to 6.9° horizontal field of view
- 1/4"-20 threaded bottom mount
- Runs on PoE or 12 VDC (power adapter included)
- Dynamic/static IP addressing toggle switch
- Photobooth capable
Camera
- Video Output: 1 x 3G-SDI; 1 x RJ45 IP Network
- Optical Zoom: 12x
- Resolution: 1080p60/50/30/25; 1080i60/50;
- Power Supply: 12 W, 1 A
- Sensor: 1/2.7" CMOS, 2.07 MP
- 720p60/50
- Focal Length: 3.5-42.3mm
- Aperture: f/1.8-2.8
- Minimum Illumination: 0.05 Lux (f/1.8, AGC On)
- Field of View: : orizontal: 72.5 to 6.9°; Vertical: 44.8 to 3.9°
- Shutter Speed1/10,000 to 1/3 Second
- SNR: ≥ 55 dB
- Image Flip: Vertical Flip and Mirror
- Working Environment: Indoor
- Communication: RS-485 VISCA, Pelco-D, Pelco-P
- Baud Rate: 2400, 4800, 9600 Bits
- Power Source: 12 VDC (10.8 to 13 VDC) or PoE 802.3af
- Power Connector: JEITA Type
- Dimensions: 3.1 x 5.7 x 2.9" / 7.9 x 14.5 x 7.4 cm
- Weight: 1.4 lb / 635 g
Packaging Info
- Package Weight: 1.955 lb
- Box Dimensions (LxWxH): 9.4 x 4.8 x 4.6"
