    Manufacturer: PTZOPTICS

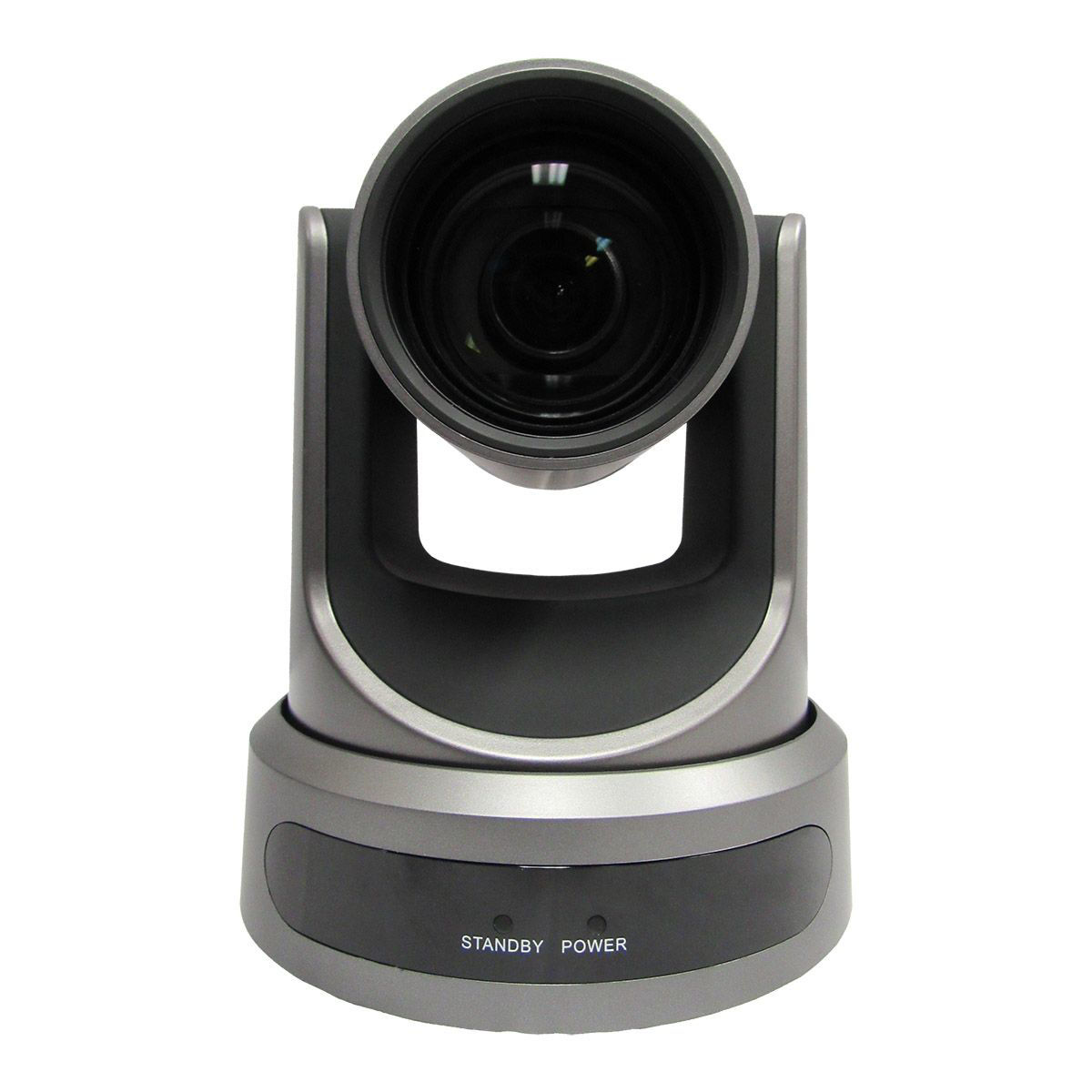

    12X Optical Zoom | PTZ Camera | USB 3.0, IP Network RJ45, HDMI, CVBS | 1920 x 1080p | 72.5 degree HFOV (Gray) US Style Power
    SKU: PT12X-USB-GY-G2
    GTIN: 737993158820
    Availability: Availability Contact for availability
    $1,699.00 excl tax
    i h
    Delivery date: 7 to 10 Days

    What is a USB PTZ Camera?

    USB refers to Universal Serial Bus. This is the most common type of computer port, which can be used to connect keyboards, digital cameras, mice, game controllers, printers, and many other removable media drives.

    Powerful Controls & Optical Zoom

    Our plug-and-play USB 3.0 camera models are built with ease of use and compatibility in mind, featuring game-changing optics and video communication installation options.

    USB connectivity is now available with options for HDMI and IP streaming in the latest USB PTZ cameras from PTZOptics. The combination of robust high-definition video outputs and flexible camera control options are what makes this camera powerful. Realize the value of connecting this camera to any application, and enjoy the advanced camera control options which include iOS, Android, PTZ controllers, joysticks and more.

    Flexible Mounting Options

    Designed to provide flexible mounting options with powerful remote control capabilities.

    • Wall Mounts
    • Ceiling Mounts
    • Pole Mounts
    • Outdoor Enclosures

    Versatile Control Options

    Remote camera control options when and where you want them. Use PTZ controls built-in to your favorite video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster. Or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, Superjoy.

    Features and Benefits

    • Smartphone (iOS, Android, Kindle)
    • Plug and Play USB Connectivity
    • Open Source Camera Control
    • Three Simultaneous Video Inputs
    • Compatible with Extron and Crestron Control Systems (IP or Serial)
    • IP Joystick Controller
    • Serial Joystick Controller
    • StreamDeck Integration

    Camera & Lens

    • Video Output Interface USB 3.0, HDMI, IP Streaming, CVBS
    • Lens 12x, F3.5mm-42.3mm, F1.8-F2.8
    • Lens Zoom 12x, 16x Digital Zoom
    • Power Supply 12W 24W(Max)
    • Video CMOS Sensor 1/3” CMOS, 2.12 Mega Pixels
    • Frame Rate 1080p/30, 1080p/25, 720p/60,
    • 720p/50, NTCS, PAL
    • Field of View 72.5°
    • Min Lux 0.5 Lux at F1.8, AGC ON
    • Shutter Speed 1/30s - 1/10000s
    • SNR ≥55dB
    • Vertical Flip & Mirror Supported
    • Horizontal Angle of View 6.9° (tele) to 72.5° (wide)
    • Vertical Angle of View 3.9° (tele) to 44.8°(wide)
    • Working Environment Indoor

    Pan & Tilt Movement

    • Pan Movement ±170°
    • Tilt Rotation Up: 90° Down: 30°
    • Presets 64 Presets (245 Presets via RS-232 & UVC)

    Rear Board Connectors

    • Network Interface RJ45
    • Audio Interface Line In, 3.5mm (IP Stream Only)
    • Communication Interface RS-232, RS485
    • Baud Rate 2400/4800/9600 bits
    • Power Supply Interface JEITA Type Power Adapter (DC IN 12V)
    • USB Interface USB 3.0 *(requires quad core processor)

    Physical Specifications

    • Dimension (in.) 5.56W x 6.88H x 5.88D (8“ H w/ Tilt up)
    • Dimensions (mm) 142W x 175H x 150D (204H w/ Tilt up)
    • Box Dimensions 9”x9”x10” | 229mmx254mmx229mm
    • Camera Weight 3.05 lbs. (1.38 kg)
    • Boxed Weight 5.4 lbs. (2.45 kg)

    Electrical Index

    • Input Voltage 12V DC (10.8 - 13.0V DC)
