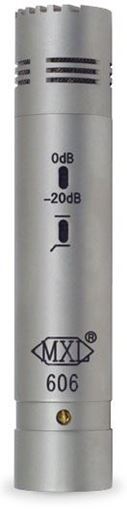

MXL 606 Small Diaphragm Drum / Instrument Mic

606 Small Diaphragm Drum / Instrument Mic
Manufacturer: MXL Microphones
SKU: 149732
GTIN: 801813149340
Delivery date: SPECIAL ORDER - 2 to 4 Weeks
$44.95 excl tax

Available in the US
This product is available for shipping or download to United States customers



Available in Canada
This product is available for shipping or download for Canadian customers

MXL 606

Small Diaphragm Condenser Instrument Microphone

PATENTED

The MXL 606 instrument microphone delivers the sound you are looking for when recording snare drums, high-hat cymbals, acoustic guitars, pianos, percussion, stringed instruments and more. Using transformerless FET circuitry and a gold-sputtered diaphragm capsule provides a clean and clear tone. The 606 also features a -20 dB switchable attenuation pad and low-frequency roll-off.

  • Small-diaphragm instrument mic with a warm, detailed sound
  • Transformerless FET circuitry for clean, clear recordings
  • Bass roll-off and attenuator to fit any recording situation
  • Excellent detail in the midrange and at the top end
  • Ideal for percussion, acoustic guitars and pianos
Type:
Pressure gradient condenser mic
Diaphragm:
Gold-sputtered, 6 micron
Capsule Size:
22mm/.87 in.
Frequency Response:
30Hz - 20kHz
Polar pattern:
Cardioid
Sensitivity:
15 mV/Pa
Output Impedance:
150 ohms
Equivalent noise:
17 dB (A-weighted IEC 268-4)
S/N Ratio:
77 dB (Ref. 1 Pa A-weighted)
Max SPL for .5% THD:
137 dB
Power Requirements:
48V phantom power (+/- 4V)
Size:
110mm x 23mm/4.3 in. x 0.89 in
Weight:
0.25 lbs/113g
Metal Finish:
Silver
