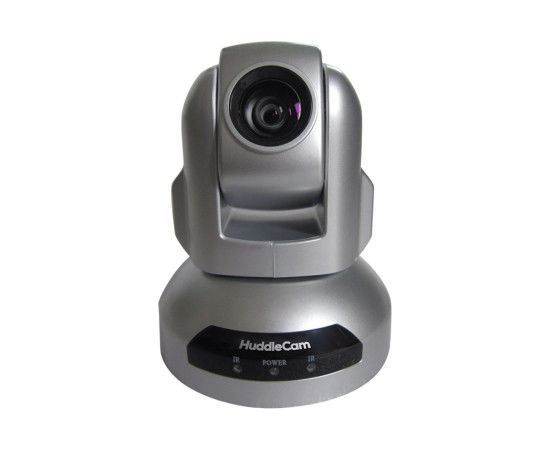

The ideal entry-level conferencing camera for small to medium sized rooms
HuddleCamHD cameras are the perfect cameras for professional video conferencing. Designed with a wide variety of conferencing setups in mind, there is a HuddleCamHD solution that will work for any situation. Offering superior quality at an affordable price, the entire HuddleCamHD line of cameras is easy to setup and ready to use in a matter of minutes.
Be seen in 1080p
Crystal clear High Definition 1080p video with lossless 10X optical zoom letting you get up close to see and interact with your team.
Easy Set Up
With HuddleCamHD you are getting the easiest solution possible. Simply plug your camera into your computers USB port and start your video conference.
Plug-and-Play USB Connectivity
Easily connect your camera to a PC, Mac or ChromeBox without the need for additional software. For best results use a quad-core processor.
Ideal Field of View
The HuddleCamHD˜10X has an ideal field of view for long and narrow rooms. Wide enough to capture your entire table but narrow enough to zoom across the room onto a white board or area of interest.
Use your favorite software
Works with virtually every online video conferencing software with no need for additional drivers or proprietary connections.
Camera Presets
Access camera presets with the included IR remote control. Easily control your cameras pan tilt and zoom along with other fine tuning setting from your remote control.
Robust Installation Options
Easily invert the camera image for installation on the ceiling. Use the included Tri-Pod mount adapter to fasten the camera to a standard tri-pod or simply mount on the wall.
RS-232 Camera Control
Integrate the camera into a larger control systems such as Crestron or AMX. Even convert RS-232 to USB and control from your computer.
Features:
- 10X Optical Zoom
- USB 3.0 *(requiresquad core processor)USB 2.0 @720p
- RS-232
- 1920 x 1080
- 53° Field of View
- Up to 30fps
- 64 Presets
- IR Remote
Camera & Lens
Video CMOS Sensor 1/2.8” CMOS 2.0 Mega Pixel
Frame Rate 30fps 1920 x 1080p, 30fps 1280 x 720p
Lens Zoom 10X Optical Zoom, f=5-50mm
Field of View 8° (tele) to 53° (wide)
Min Lux 0.1 Lux
White Balance Auto/Manual/Outdoor/Indoor/One Push/ATW
Pan/Tilt Movement Rear Board Connectors
Pan Movement 0-359°
Tilt Rotation Up: 90°, Down: 45°
Presets 64 Presets, 4 Patrol lines
Electrical Index
Power Supply Adapter 12V DC 2A
Input Voltage 12V DC (10.5-14V DC)
Input Power 24W (Max)
Working Enviornment Indoor
Physical
Material Aluminum, Plastic
Dimensions (in.) 5.68W x 6.31H x 5.88D [7.19H w/ Tilt Up]
Dimensions (mm.) 145W x 161H x 150D [183H w/ Tilt Up])
Weight 2.14 lbs (.97 kg)
Box Dimensions (in.) 12.13W x 9.25H x 9.5D
Box Dimensions (mm.) 309W x 235H x 242D)
Boxed Weight 5.52 lbs (2.50 kg)
Color black, gray, white
G2 models include an updated firmware and new form factors.
What’s in the Box
10X Zoom USB 3.0 Camera
12V/2.0A DC Power Adapter
Installation Bracket & Screws
USB 3.0 Data Cable (3m), Serial Control Cable, RS-232C to RS-485 Cable
IR Remote Control
User Manual (Also Downloadable Online)
