CV Out Option is Built to Order in the Factory and is Special Order Only
The CV Option provides the output of DC voltage at the analog outputs of the Pulse16. This allows control voltages (CV) to be generated via a CV plugin in a DAW, controlling modular systems.

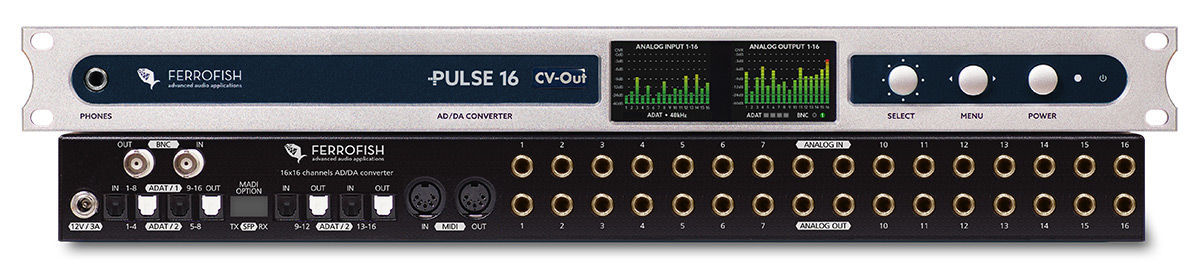

16 Ch AD/DA/ADAT Converter With CV
Converting 16 studio-quality balanced analog inputs and outputs to ADAT I/O, the Ferrofish Pulse16 CV is a high-quality solution for connecting a wide range of analog and ADAT studio gear to your console or computer interface. ADAT, a mature, cost-efficient protocol, is widely available across the pro audio world, so expanding your studio with the Pulse16 CV is a no-brainer. This CV version of the standard Pulse 16 can generate an output DC voltage for controlling analog gear. This high-density AD/DA/ADAT converter handles 16 x 16 balanced analog TRS ins and outs at professional studio levels up to +20dBu — adjustable in 1dB steps. 4+4 ADAT optical ports provide full 16 x 16 channel operation up to 96kHz. You can upgrade your Pulse16 with the optional optical MADI I/O module via the SFP port (which transforms it into a Pulse16 MX). This optional MADI upgrade not only adds 64 x 64 MADI channels, but allows sample rates of up to 192kHz for all I/O, including ADAT (SMUX/4).
Ferrofish Pulse16 CV 16 x 16 AD/DA, & ADAT Converter with Control Voltage Features:
- 16 x 16 I/O on balanced TRS
- Generates output DC voltage for controlling analog gear
- 2 x 4 ADAT TOSlink optical ports
- SFP port for optional expansion module
- Optional Optical MADI I/O upgrade (SFP module available separately)
- Front-panel stereo TRS Headphone jack
- Wordclock I/O on BNC connector
- MIDI I/O for remote connection
- Internal routing matrix
- Quality crafted in Germany
