    Angelbird WINGS X2 - HBA - Blue

    Manufacturer: Angelbird Technologies
    Angelbird WINGS X2 - HBA - Blue
    SKU: WX2-HBA-B
    GTIN: 812937021290
    Availability: Availability Special Order Only
    $144.90 excl tax
    i h
    Ship to
    Shipping Method
    Estimated Delivery
    No shipping options
    Delivery date: 7 to 10 Days

    Angelbird Wings X2 - HBA - Blue

    Time to spread your Wings and fly!

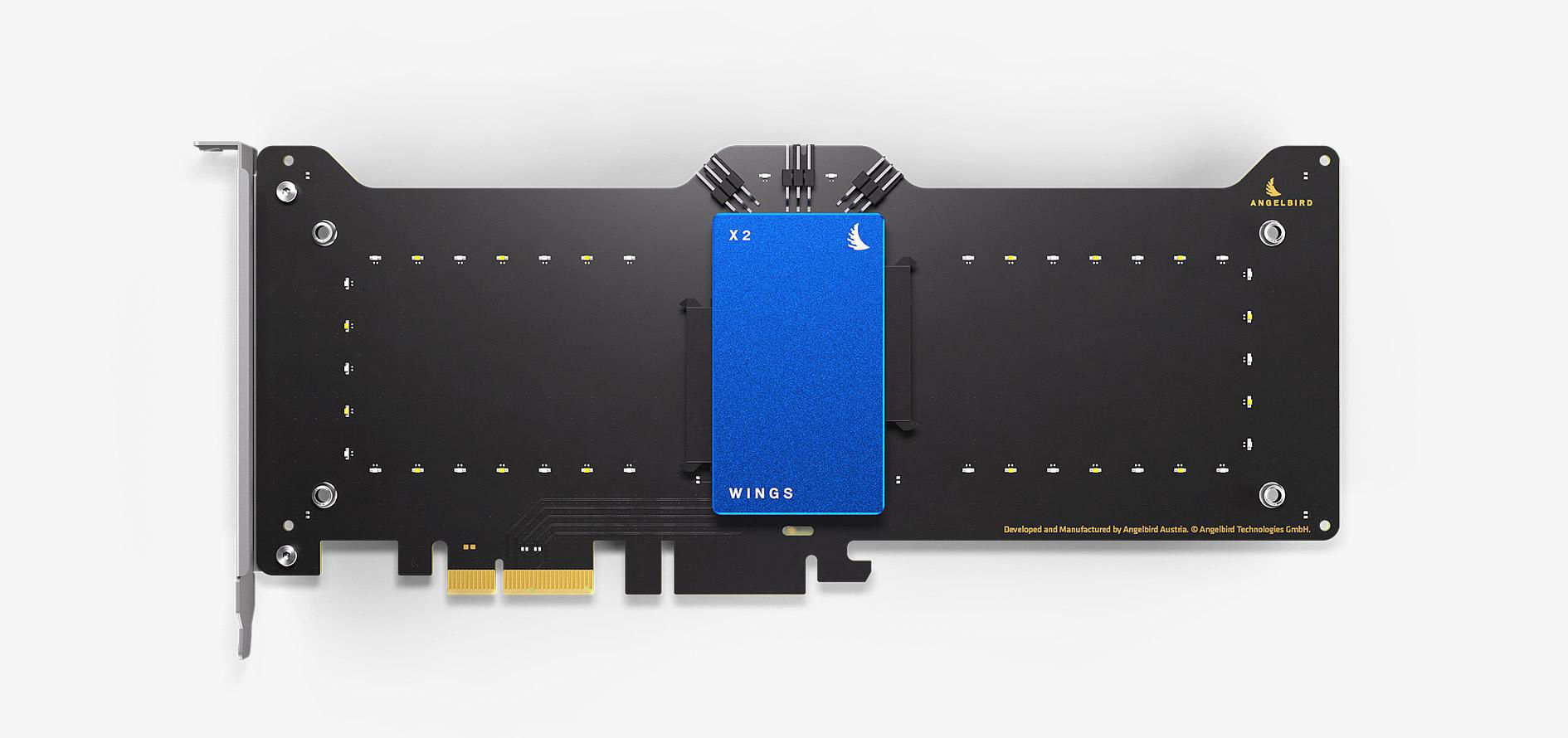

    Angelbird Wings is a PCIe card, which hosts up to four Crest SSDs. The more SSDs are attached, the faster your system will be. This sounds unreal, so, step by step we will explain.

    Extremely fast storage

    In conventional system, each disk is used separately. With a Wings Striped RAID, the load is spread out over all connected Crest SSDs, giving you an amazing performance boost. By adding up to four disks to the Wings card, you incrementally increase your performance.

    Optimized for Audio and Video

    Using Wings you can edit audio and video material in real time without any penalty given by traditional hard drives. The card is perfectly optimised to work flawlessly on Apple OS X and all its pro apps.

    Three models to choose from

    Wings is available in three models, one with 32GB or 16GB on-board SSD memory, or as Lite Version without on-board memory. The on-board memory can be used however you wish.


    You can put up to four Crest SSDs on a Wings card. They don't even need to have the same capacity. You could start with one 60GB SSD for the OS and add two 120GB later for work and project data.


    Besides Crest SSDs, almost all 3rd party 2.5" Hard Disk Drives and SSDs are supported.


    The Wings card is bootable, both on PC and Mac! This means you can install your system on an SSD on the Wings card, and start your system from it.

    Secure your data with RAID

    If you choose to setup a Mirror RAID with your Wings, all your data one one disk is physically duplicated onto the other. This means that even when one disk fails, you still have a second copy to continue working with.

    RAID Configurations

    RAID stands for ‘Redundant Array of Inexpensive Disks’, which means that multiple storage media are combined as one unit by means of software, which in most cases is integrated into every OS.

    Multiple, separate RAID arrays can be arranged over single and multiple cards. Depending on the supported operating system, RAID 0, RAID 1, RAID 5 are possible. We recommend, if equipped with SandForce® based Crest SSD, to set up a Striping array for maximum performance and storage size.

    Fast gaming

    Using Wings, loading time is reduced to almost zero, as well as real time content loading. Gamers can load high definition games with large textures and rich content blazingly fast.

    Technical Specifications

    TypeExpandable PCIe x4 card.
    Onboard storage32GB on-board SSD16GB on-board SSD-
    OS CompatibilityApple® OS X Leopard, Snow Leopard and Lion.
    Microsoft® Windows™ 7, Windows™ Server 2008 and Windows™ Vista (32 and 64bit).1, 2
    PCIe CompatibilityPCIe rev 1.0a x4 10Gb/s
    SATA CompatibilitySATA II rev 1.0 3Gb/s. Backwards compatible with SATA I
    Expansion Ports4 ports for 2.5" SATA drives
    Power RequirementThe Wings card needs to be powered with one mini-molex connector. A SATA power to mini molex converter cable is included.
    Package contents1x Wings PCIe x4 card, 1x Wings Power Cable, 1 Pack of 3rd Party Drive Bolts
