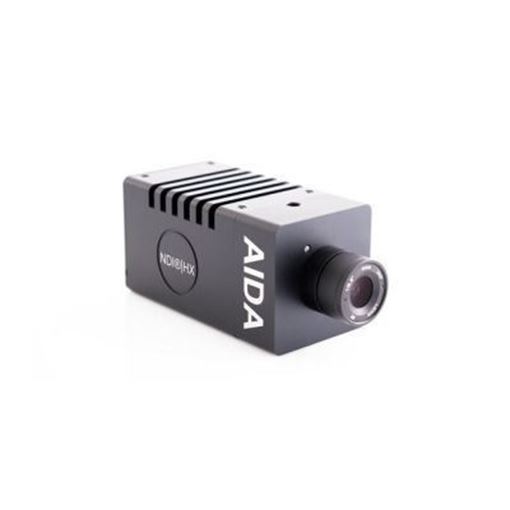

AIDA Imaging Full HD HDMI/IP/NDI®|HX PoE POV Camera

Full HD HDMI/IP/NDI®|HX PoE POV Camera
Manufacturer: AIDA Imaging
SKU: AIDA-HD-NDI-200
GTIN: 686091739748
Delivery date: 7 to 10 Days
$450.00 excl tax
$385.00 excl tax

Available in the US
This product is available for shipping or download to United States customers



Available in Canada
This product is available for shipping or download for Canadian customers

AIDA Imaging Full HD HDMI/IP/NDI®|HX PoE POV Camera

The HD-NDI-200 is the most cost-effective NDI®|HX2 solution to date. Equipped with a Full-HD progressive CMOS Sensor, this camera can capture up to 1080 60p under different lighting conditions. Packed with an interchangeable lens and embedded audio, capturing crisp HD video has never been easier. The HD-NDI-200 is the perfect POV camera to integrate into any existing workflow.

NDI®|HX2, NewTek’s innovative Network Device Interface technology, is a royalty free standard enabling IP video workflows across Ethernet networks. NDI®|HX2 is a bi-directional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and audio in real time. The NDI®|HX2 encoding algorithm is resolution and frame rate independent, supporting up to 4K and beyond, as well as multi-channel, floating-point audio up to 16 channels and beyond. NDI®|HX2 also includes tools to implement video access and grouping, bi-directional metadata, tally, and more.

MAIN FEATURES

  • Full-HD 1/2.8″ Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX2/HDMI video.
  • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
  • Superb motion-compensated temporal noise reduction filter for motion video without blurring.
  • OSD control breakout cable with RS-485 for remote communication.
  • Flawlessly relays multi-channel embedded audio via HDMI.
  • Perfectly suited for broadcast, pro audio/video, and security.
  • Versatile, compact, and rugged design.

SPECIFICATIONS

Video

Image Sensor 1/2.8" Progressive CMOS
Effective Pixels Horizontal: 1920, Vertical: 1080
Pixel Size 2.9μm x 2.9 μm (V)
Resolution 1080p, 1080i, 720p
Resolution/Rate 1080 60p/59.94/50p/30p/29.97p/25p/24p/23.98p
1080 60i/59.94i/50i/
720 60p/59.94p/50p/30p/29.97p/25p
Output HDMI, RJ45, NDI|HX2
IP Rate 1920 x 1080 @ 1~60
1280 x 720 @ 1~60
1024 x 576 @ 1~60
620 x 360 @ 1~60
Color Space

4:2:2 (YCbCr) 10bit

Lens

Lens Lens Included

Audio

Input 3.5mm TRS Stereo Audio Port
Sample Rate 16/24/32 Bits

Physical

Camera Control Protocol: VISCA
Operation Temp 32°F - 104°F
Power 12VDC (+9 - +15VDC)/ POE
