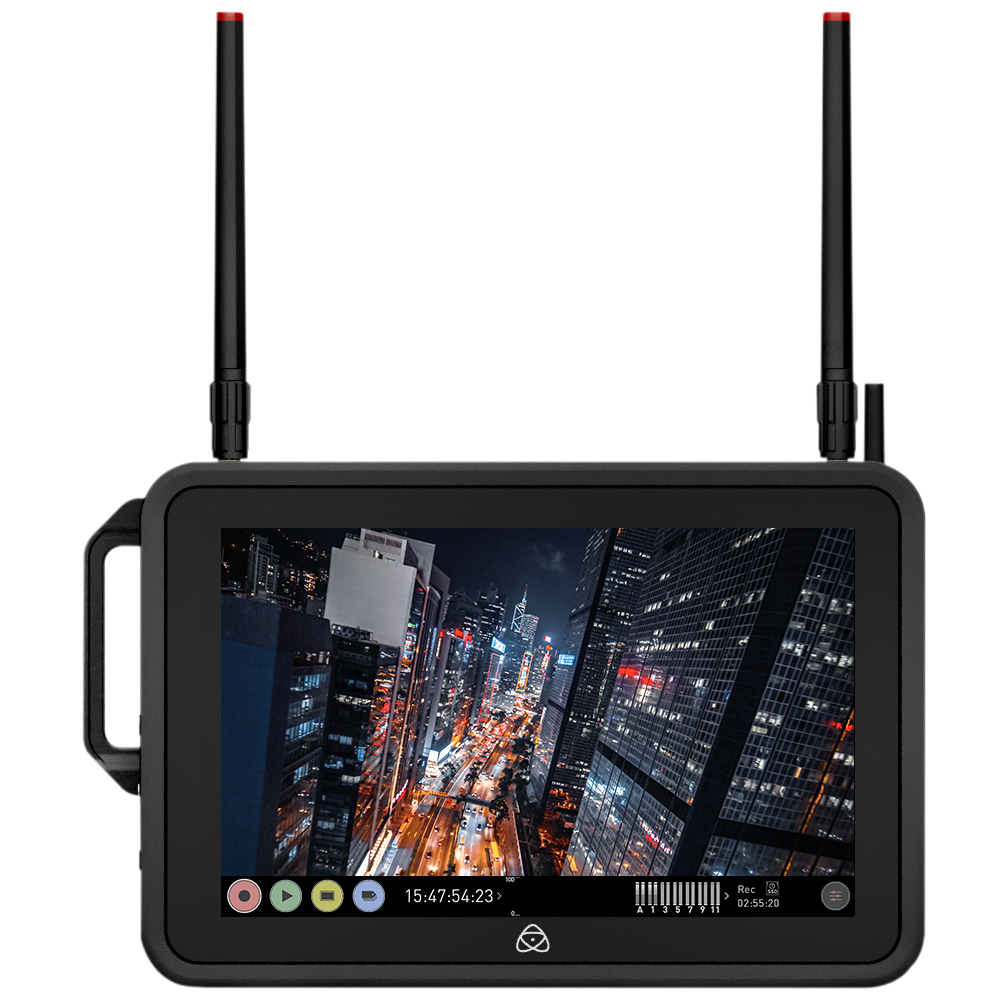

SHOGUN CONNECT, the first all-in-one device for HDR monitoring, RAW recording, and a connection to the world.
The SHOGUN CONNECT builds on the ground-breaking SHOGUN product-line. Featuring a brighter screen and multiple recording options, the SHOGUN CONNECT is the first fully integrated product in the CONNECT range. It combines HDR monitoring, RAW recording, and cloud workflows. The SHOGUN CONNECT features a loop through 12G SDI IN and OUT interface with an option to activate SDI RAW and send a signal to multiple devices. ATOMOS AirGlu™ wireless timecode for seamlessly synchronizing all cameras, multiple power options to accommodate a variety of long range on-set scenarios, plus Wi-Fi 6, Gigabit Ethernet, Bluetooth LE, and USB C to ensure flexible, all-round connectivity. The SHOGUN CONNECT transforms professional cinema, mirrorless, and DSLR cameras into fully connected devices that support a range of advanced cloud-based workflows.
Stream from Anywhere
SHOGUN CONNECT supports livestreaming to a range of online services including, Facebook Live, Twitch, and YouTube. With Wi-Fi 6, Gigabit Ethernet, and the ability to join cellular hotspots all built-in, the SHOGUN CONNECT helps filmmakers, streamers and video content producers reach their audience from anywhere.
Collaboration for Everyone
SHOGUN CONNECT is a fully integrated Frame.io Camera to Cloud (C2C) device. Through support of HDMI and SDI equipped cameras, the device offers advanced online workflows and remote collaboration to many more filmmakers, streamers, and video content creators. With Frame.io for Adobe Creative Cloud now part of the Creative Cloud subscription, even more filmmakers will have access to cloud-based workflows.
Dual Record
C2C brings the domains of production and post closer together, enabling new ways for remote teams to collaborate. The dual record feature of the SHOGUN CONNECT creates matching “hero” Apple ProRes, ProRes RAW, Avid DHxHR/HD and “proxy” HEVC (H.265) files simultaneously. Proxy files can also be uploaded during capture using ATOMOS progressive transfer technology so that these files are available in the cloud as soon as recording stops.
Bring Your Own Camera
The 7-inch SHOGUN CONNECT features a new, brighter HDR screen and comprehensive range of built-in interfaces including, loop through 12G SDI IN and OUT for SDI RAW and HDMI to support an expansive range of professional cinema, DSLR and mirrorless cameras. The device also features ATOMOS AirGlu™ technology which enables direct, long-range communication between devices and provides a wireless timecode lock.
CONNECT to the World
SHOGUN CONNECT enables filmmakers, streamers, and video content producers of every kind to record, monitor, and share their work with an audience from anywhere, easily, and seamlessly.
ATOMOS Cloud Studio
ATOMOS Cloud Studio is a collection of video production services, developed in partnership with MAVIS, which represents a radical innovation for all video creators, streamers, and filmmakers. Cloud Studio will launch in June 2022 with two new cloud-based live video production services for sharing and real-time collaboration. ATOMOS Capture to Cloud uploads files from ATOMOS network connected devices to cloud-based platforms, including Frame.io (an Adobe Company). ATOMOS Stream uses any ATOMOS network enabled device to live stream to popular platforms like Facebook Live, Twitch, YouTube, and more.
Key Features:
- 7" 2000nit monitor with built in video recording via HDMI and SDI up to 4Kp60
- Capture RAW via HDMI at up to 8Kp30 / 4Kp120 and via SDI at 6Kp60 and 4K120p to Apple ProRes RAW
- Simultaneous record of Hero ProRes RAW, ProRes or DNxHR/HD with matched H.265 Proxy
- 12G SDI IN with support for video 4K at up to 60fps, with option for SDI RAW 6Kp30, 4Kp120fps and 2Kp240 (limitations apply with dual record)
- Long range ATOMOS AirGlu™ sync technology for wireless timecode via RF and Bluetooth LE
- Wi-Fi 6 provides high performance wireless connection and mobile hotspot support for connection
- 1GbE Ethernet for high-speed robust hardwired network connection
- CONNECT to ATOMOS Cloud Studio services
- Livestream to Facebook Live, Twitch, YouTube, and more, directly from your network-connected device
- Bi-directional HDMI<=>SDI input conversion with simultaneous SDI & HDMI outputs
Physical Specifications
Dimensions (W x H x D mm)
198mm x 133mm x 40mm / 7,8" x 5,2" x 1,57"
Weight
730g / 1.6lb (excluding batteries)
Mount points
Top: 1 x 1/4"20 or 3/8" with anti rotational points, Bottom: 1 x 1/4"20 or 3/8" with anti rotational points, Right: 1 x 1/4"20 or 3/8" with anti rotational points
Environmental
Ambient operating temperature
Up to 40 Degrees Celsius
Construction & Control
Body
Aluminium alloy chassis with ABS Polycarbonate back plate
Cooling
Actively controlled fan and heat sink
Multi-function button
Power / lock Screen
Tally light
Yes
Power
Input voltage
6.2V to 16.8V
Compatible batteries
1 x NP-F / L-Series
Battery voltage
7.2V
DC in connector
Locking DC Jack (5.5mm OD & 2.1mm ID)
D-Tap
Via optional D-Tap to DC cable
Display
Touchscreen
SuperAtom IPS panel (capacitive touch)
Size
7”
Resolution
1920 x 1200
PPI
325
Bit depth
10-Bit (8+2 FRC)
Backlight Type
Edge lit
Brightness (cdm2 / Nits)
2000nit +/-10%
Aspect ratio
16:9 Image Display
Color Gamut
Rec.709
Calibration support
ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
Color Pipeline
Gamma
Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, RED LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Z CAM Z-Log2, Olympus OM-Log400 / Flat, Leica L-Log
Gamut
BT2020, DCI P3, PDCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, ARRI Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display
.Cube Format
3D LUT Output
Loop out
3DLUT 50/50
Yes
Monitoring Modes
Native / 709 / HLG / PQ / 3D LUT
HDR output Conversion
HLG / PQ
Color Management
Calibration
ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
Display controls
Backlight, Lift, Gamma, Gain
AtomHDR
Built in Technical Log to HDR EOTF
3D luts
Display, monitor and output, Record, Load via SSD
Legalize
Input
Video Input
HDMI
1 x HDMI 2.0
SDI
1 x 12G SDI
Bit Depth
8 / 10 bit
Video Chroma Subsampling
YCbCr 420 & 422
HDR
Yes with HDMI Auto detection
File Naming
Standard
S/S/T & Rolling
Via SDI
RED, ARRI
Video Output
HDMI
1 x HDMI 2.0
SDI loop out
1 x 12G SDI
HDR
Yes with Auto detection
Audio In/Out
Audio Quality
24-Bit / 48kHz
Audio Codec
PCM
HDMI
8ch 24Bit, input dependent
SDI
12ch 24Bit, input dependent
Analogue Audio in
3.5mm Jack - 5v power
Analogue Audio Out
3.5mm Jack
Headphone out
3.5mm Jack
Network
Ethernet
1GbE RJ45
Wi-fi
WI-FI 6
Wireless RF
AirGlu™ SYNC Time code Network
Cellular
Connect to Hot Spot via Wi-Fi
Web Streaming
RTMP
Yes
RTMP / S
Yes
Video Signal Conversion
HDMI to SDI
Yes
SDI to HDMI
Yes
Timecode / Sync
SDI Embedded
Embedded
HDMI Embedded
Embedded
Time of day
Yes
Wireless SYNC
AirGLu SYNC Time code Network Server or Client
RF Network range
300m
RF Frequency
Region dependant
Number of Channels
12 RF Channels per Region
Number of RF clients
100 clients
Bluetooth Network Range
10-15m (line of sight)
Number of BT clients
6 clients
LTC
Resolution & Frame Rates Maximum (Record, Monitor & Playback)
8k RAW
up to 8Kp30 Via HDMI
6k RAW
up to 6Kp60 Via HDMI & 6Kp30 SDI
4k RAW
up to 4Kp120 via HDMI / SDI
3.5k Anamorphic RAW
up to 3.5Kp60 via HDMI
2k RAW
up to 2Kp240 via SDI
4k DCI
up to 4Kp60
4k UHD
up to 4Kp60
2K DCI 2046 x 1080
up to 2Kp60
FHD 1920 x 1080 Progressive
up to 1080p120
FHD 1920 x 1080 PsF
Pull down
FHD 1920 x 1080 Interlaced
1080i50 / 1080i60
1280 x 720p
60p
Recording CODEC
Apple ProRes RAW
up to 12bit 8Kp30 / 4Kp120
ProRes HQ / 422 / LT
up to 4Kp60
Avid DNxHD
up to 1080p60
Avid DNxHR
up to 4Kp60
h.265
up to 4Kp60 (MOV container)
Primary Codec + Proxy Record
ProRes RAW, ProRes, DNx with H.265
Pre Roll
8 secs HD / 4 secs 4k ProRes & DNx
Timelapse
Yes
Gang control
SYNC record control
Playback
Playlist
Yes, Selected, Favourites or Combined
Loop Playback
Yes, with custom in and out points
Apple ProRes Raw
Yes, recorded clips
ProRes HQ / 422 / LT
Yes with linear PCM
Avid DNx HD
Yes with linear PCM
Avid DNx HR
Yes with linear PCM
H.265
Recorded clips
Monitoring
SDR
Native, 709, LUT
HDR
HLG, PQ Rec2020
De-Interlace
Selectable mode
Supported media
Interface
SATA 3 – MasterCaddy / SSDmini / CFast II (via adapter)
Master Caddy I
No
Master Caddy II
Yes
Master Caddy III
Yes
SSDmini
Yes
CFast II
Yes via AtomX CF adapter
File System
exFAT
On screen tools
Waveform
3 sizes
RGB parade
3 sizes
Vector scope
Small / large
1 x Zoom
Tap to zoom
2 x Zoom
Tap to zoom
Focus peaking
Coloured and slider for threshold
Zebra
Customisable
False color
With IRE scale
Isolate color channel
Blue only
Cine Frame Guides
Preset and Custom
Social Frame guides
Preset and Custom
Safe areas
SMPTE frame size – Action and Safe
Grid markers
9 grid
Frame Grab and Onion skin over lay
Lossless PNG 1920 x 1080
Anamorphic desqueeze
Display 1.25x, 1.33x, 1.5x, 1.8x and 2x
Display Flip
vertical
Onboard Signal Processing
RAW to Video loop out
Yes, conversion from Larger Resolutions to 4k
4K UHD downscale for HD
Yes, menu enabled
DCI Crop
Yes, menu enabled
I > P
2:2 and 3:2
PSF > P
2:2 and 3:2
Remote control
Bluetooth LE
via AtomControl App
External Device Control
Serial 2.5mm Jack
Remote to USB – Z CAM
Supported Applications
XML – Cut, Tag & Edit
Final Cut Pro
Apple ProRes Raw
Apple Final Cut Pro, Adobe Premiere, Avid Media Composer, Grass Valley Edius, ASSIMILATE SCRATCH
Apple ProRes
All Applications with support for Apple ProRes in .MOV wrapper
Avid DNx
All Applications with support for Avid DNX in .MOV wrapper
Warranty
Standard
1 Year
Extended
3 Years
Accessories included:
- SHOGUN CONNECT International Power supply
- 7" protective Pouch
- AtomX SSDmini Handle
- MasterCaddy III with screws
- Wifi Antenna with Black caps
- RF antenna, Antenna storage Pouch
- 3.5mm audio jack to jack cable
- Antenna coloured caps
- Antenna mount covers
- Screen Cloth
